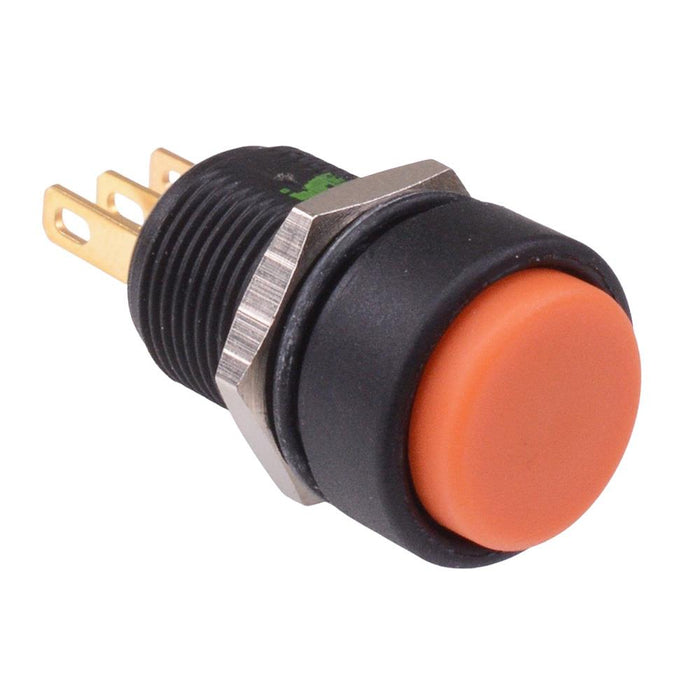

IMP7Z492234UL APEM Orange Momentary 12mm Push Button Switch SPDT IP67

by APEM
SKU 487496

MPN: IMP7Z492234UL

Availability:
118 in stock
Original price £15.83 - Original price £15.83
Original price
£15.83
£15.83 - £15.83
Current price £15.83
The IMP7Z492234UL is a orange momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features quick connect terminals and SPDT contacts, suitable for a wide range of applications including automotive.

  • Momentary operation
  • Snap action: tactile feedback with audible click
  • SPDT NO/NC contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Quick connect terminals
  • Rating: 3A 28VDC
  • Panel thickness: 1.5-10mm
  • Back of panel space requirement: 20mm minimum
  • Dimensions: 25.1 x 17.5mm (length x diameter)
  • UL approved
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Orange
    Contact Configuration SPDT
    Contact Material Gold Plated Silver
    Contact Rating 3A 28VDC
    Current Rating 3A
    Electrical Life 25,000 Cycles
    Illuminated No
    Illumination Colour Non Illuminated
    Material Polyamide
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 13.6mm
    Panel Thickness 1.5-10.0mm
    Product Series IM
    Protection Level IP67
    Switch Operation On-(On)
    Terminal Type Quick Connect
    Voltage Rating 28VDC
