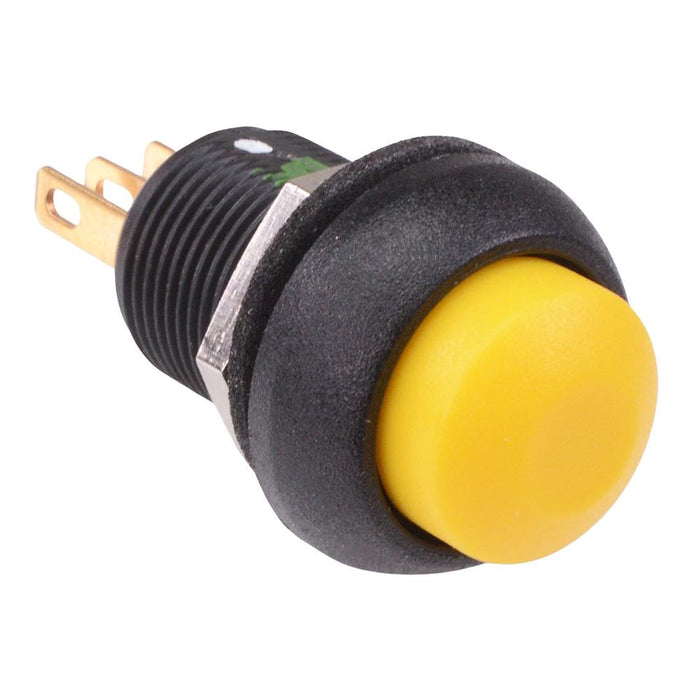

IMR7Z452104UL APEM Yellow Momentary 12mm Push Button Switch SPDT IP67
by APEM
SKU 487540
MPN: IMR7Z452104UL
Availability:
48 in stock
Original price
£11.22
-
Original price
£11.22
Original price
£11.22
£11.22
-
£11.22
Current price
£11.22
The IMR7Z452104UL is a yellow momentary push button switch with a 12mm bushing and high current/voltage rating. The switch features quick connect terminals and SPDT contacts, suitable for a wide range of applications including automotive.
Momentary operation Snap action: tactile feedback with audible click SPDT NO/NC contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Quick connect terminals Rating: 3A 28VDC Panel thickness: 1.5-10mm Back of panel space requirement: 20mm minimum Dimensions: 25.1 x 17.5mm (length x diameter) UL approved
Specification
Actuation | Momentary |
Back Order Lead Time | 10 Days |
Colour | Yellow |
Contact Configuration | SPDT |
Contact Material | Gold Plated Silver |
Contact Rating | 3A 28VDC |
Current Rating | 3A |
Electrical Life | 25,000 Cycles |
Illuminated | No |
Illumination Colour | Non Illuminated |
Material | Polyamide |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 13.6mm |
Panel Thickness | 1.5-10.0mm |
Product Series | IM |
Protection Level | IP67 |
Switch Operation | On-(On) |
Terminal Type | Quick Connect |
Voltage Rating | 28VDC |
