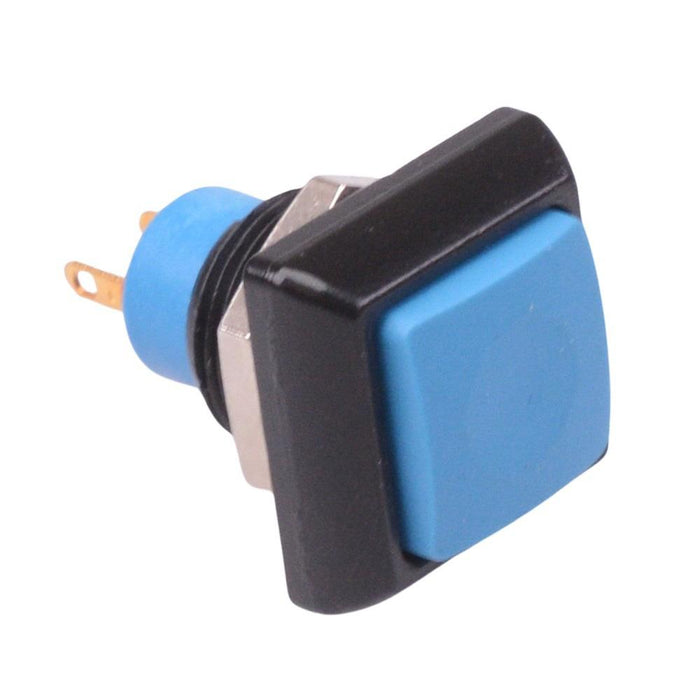

IPC3SAD1 APEM Blue Square Momentary NO 12mm Push Button Switch SPST IP67
by APEM
SKU 489983
MPN: IPC3SAD1
Availability:
640 in stock
Original price
£14.47
-
Original price
£14.47
Original price
£14.47
£14.47
-
£14.47
Current price
£14.47
The IPC3SAD1 is a blue momentary square push button switch with a 12mm bushing. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.
Momentary NO operation Solder lug terminals SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Gold plated silver contacts Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 26.3 x 17.5 x 17.5mm (height x width x length)
Specification
| Actuation | Momentary |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current Rating | 5A |
| Illuminated | No |
| Material | Zinc Diecast |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | IP |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VAC/DC |
