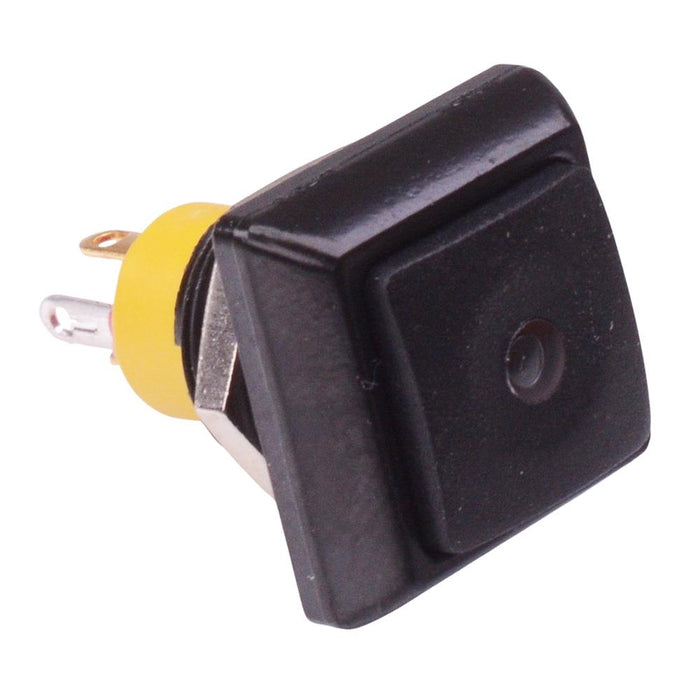

IPC3SAD2L0Y APEM Yellow LED Black Square Momentary 12mm Push Button Switch SPST IP67
by APEM
SKU 487278
MPN: IPC3SAD2L0Y
Availability:
236 in stock
Original price
£15.30
-
Original price
£15.30
Original price
£15.30
£15.30
-
£15.30
Current price
£15.30
The IPC3SAD2L0Y is a black momentary square push button switch with a 12mm bushing and yellow LED. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.
Momentary NO operation Yellow LED LED forward voltage: 2.1V LED forward current: 20mA Solder lug terminals SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 26.3 x 17.5 x 17.5mm (height x width x length)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current Rating | 5A @ 28VDC |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 2.1VDC |
| Material | Zinc Diecast |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | IP |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VAC/DC |
