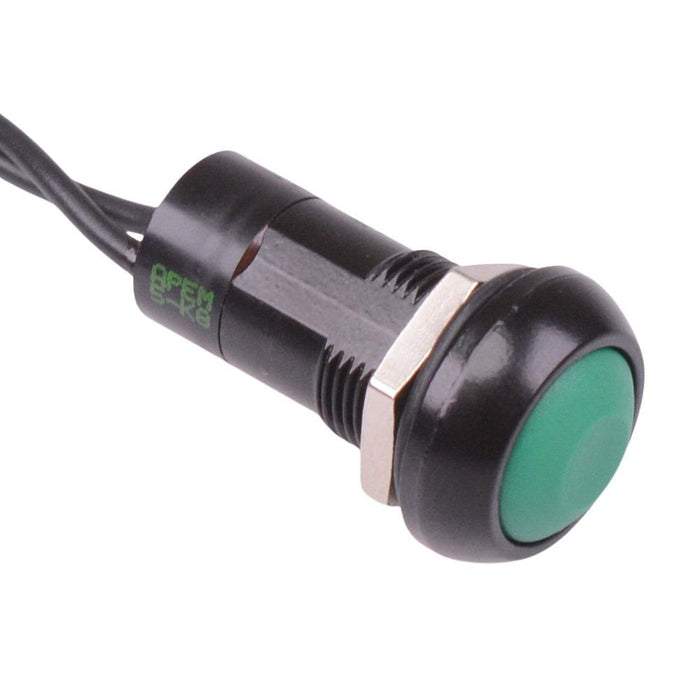

IPR1FAD3 APEM Green Round Latching Prewired Push Button Switch SPST IP67

by APEM
SKU 489992

MPN: IPR1FAD3

Availability:
24 in stock
Original price £17.50 - Original price £17.50
Original price
£17.50
£17.50 - £17.50
Current price £17.50
The IPR1FAD3 is a green latching round push button switch with a 12mm bushing and compact package sealed to IP67. The switch features flying leads and SPST contacts, suitable for applications in harsh environments including automotive.

  • Latching operation
  • Green button
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • 500mm flying leads
  • Gold plated silver contacts
  • Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC
  • Panel thickness: 1.5-5.5mm
  • Dimensions: 27.3 x 17.5mm (height x diameter)
  • Specification
    Actuation Latching
    Colour Green
    Contact Configuration SPST
    Contact Material Gold Plated Silver
    Contact Rating 4A 12VDC, 3A 48VDC, 1A 72VDC
    Current Rating 4A
    Illuminated No
    Material Zinc Diecast
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Force 10N
    Operating Temperature -40°C to +85°C
    Panel Cut Out 13.6mm
    Panel Thickness 1.5-5.5mm
    Product Series IP
    Protection Level IP67
    Switch Operation Off-On
    Terminal Type Solder
    Voltage Rating 72VDC
