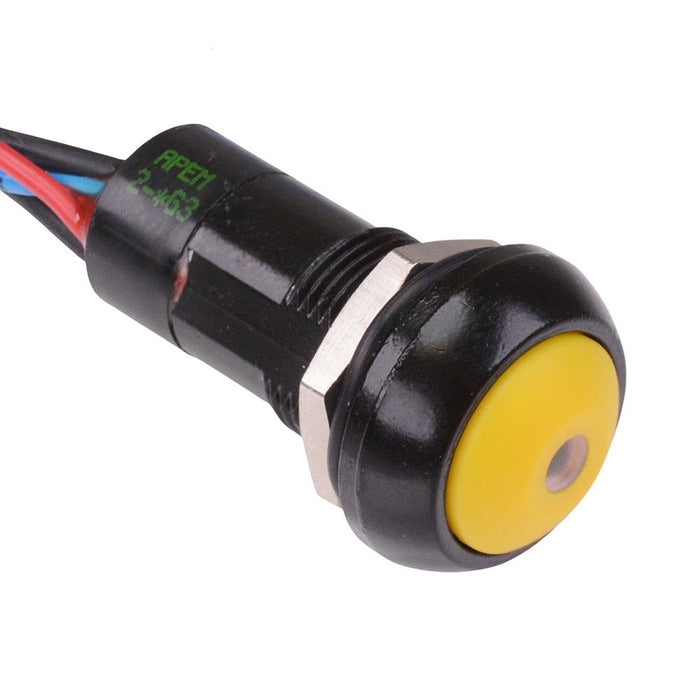

IPR1FAD5L0Y APEM Yellow illuminated Round Latching 12mm Push Button Switch SPST IP67

by APEM
SKU 487772

MPN: IPR1FAD5L0Y

Availability:
Only 2 left!
Original price £12.06 - Original price £12.06
Original price
£12.06
£12.06 - £12.06
Current price £12.06
The IPR1FAD5L0Y is a yellow illuminated latching round push button switch with a 12mm bushing and compact package sealed to IP67. The switch features flying leads and SPST contacts, suitable for applications in harsh environments including automotive.

  • Latching operation
  • Yellow button
  • Yellow LED
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • 500mm flying leads
  • Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC
  • Panel thickness: 1.5-5.5mm
  • Dimensions: 27.3 x 17.5mm (height x diameter)
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Colour Yellow
    Contact Configuration SPST
    Contact Material Gold Plated Silver
    Contact Rating 4A 12VDC, 3A 48VDC, 1A 72VDC
    Current Rating 4A @ 12VDC
    Illuminated Yes
    Illumination Colour Yellow
    Illumination Voltage 2.1VDC
    Material Zinc Diecast
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 13.6mm
    Panel Thickness 1.5-5.5mm
    Product Series IP
    Protection Level IP67
    Switch Operation On-Off
    Terminal Type Flying Leads
    Voltage Rating 72VDC
