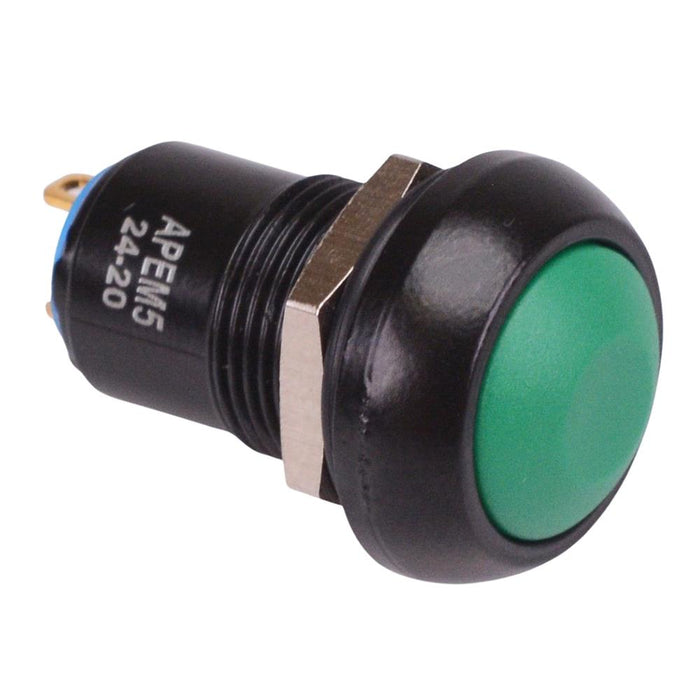

IPR1SAD3 APEM Green Latching 12mm Push Button Switch SPST IP67

by APEM
SKU 485991

MPN: IPR1SAD3

Availability:
14 in stock
Original price £12.15 - Original price £12.15
Original price
£12.15 Inc VAT
£12.15 - £12.15
Current price £12.15 Inc VAT
The IPR1SAD3 is a green latching push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments.

  • Latching operation
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 4A 12VDC, 3A 48VDC, 1A 72VDC
  • Panel thickness: 1.5-5.5mm
  • Back of panel space requirement: 19.1mm minimum
  • Dimensions: 27.6 x 17.5mm (length x diameter)
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Colour Green
    Contact configuration SPST
    Contact rating 4A 12VDC, 3A 48VDC, 1A 72VDC
    Current rating 4A @ 12VDC
    Illuminated No
    Illumination colour Non Illuminated
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating force 10N
    Operating temperature -40°C to +85°C
    Panel cut out 13.6mm
    Panel thickness 1.5-5.5mm
    Product series IP
    Protection level IP67
    Switch operation On-Off
    Terminal type Solder
    Voltage rating 72VDC
