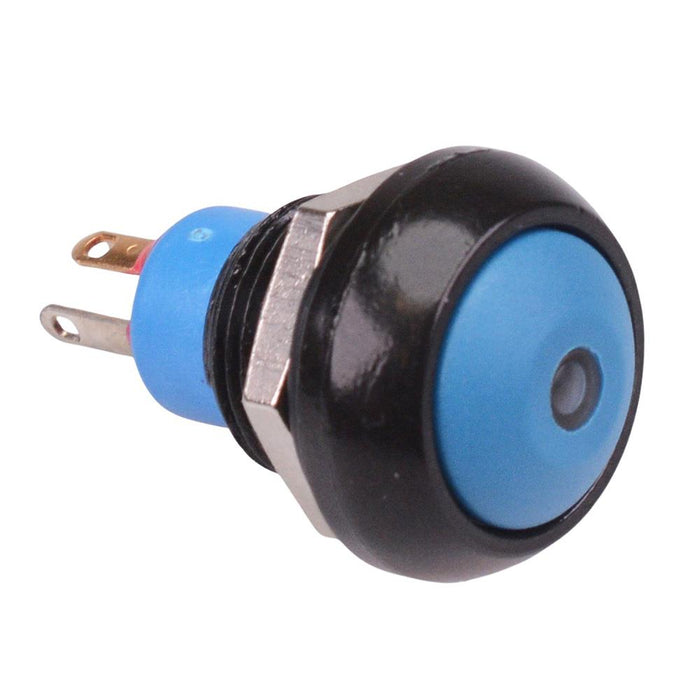

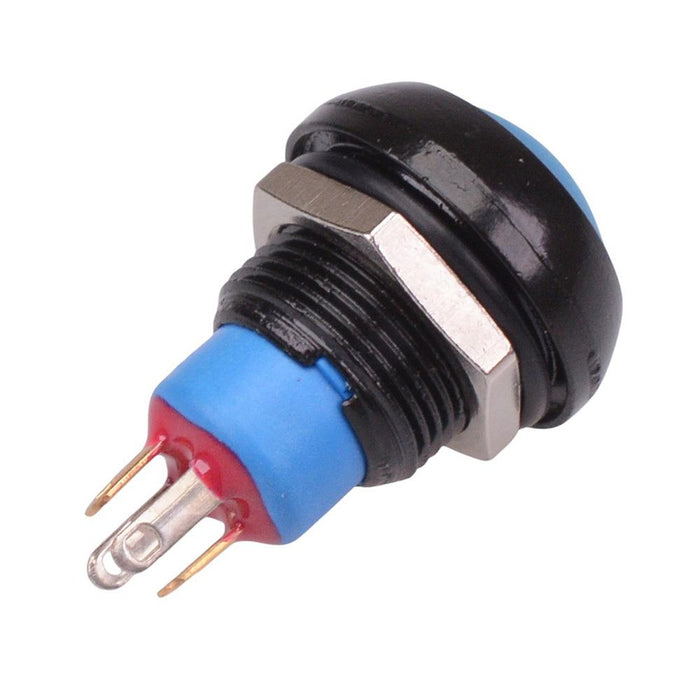

IPR3SAD1L0B APEM Blue LED Round Momentary NO Push Button Switch SPST IP67
by APEM
SKU 489997
MPN: IPR3SAD1L0B
Availability:
46 in stock
Original price
£16.55
-
Original price
£16.55
Original price
£16.55
£17.38
£17.38
-
£17.38
Current price
£17.38
The IPR3SAD1L0B is a blue momentary round push button switch with a 12mm bushing and blue LED. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments including automotive.
Momentary NO operation Blue LED LED forward voltage: 3.2V LED forward current: 20mA Solder lug terminals SPST contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm Solder lug terminals Gold plated silver contacts Rating: 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Panel thickness: 1.5-4mm Dimensions: 26.3 x 17.5mm (height x diameter)
Specification
| Actuation | Momentary |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current Rating | 5A |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 3.2V |
| Material | Zinc Diecast |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 4N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | IP |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 28VDC / 48VAC |
