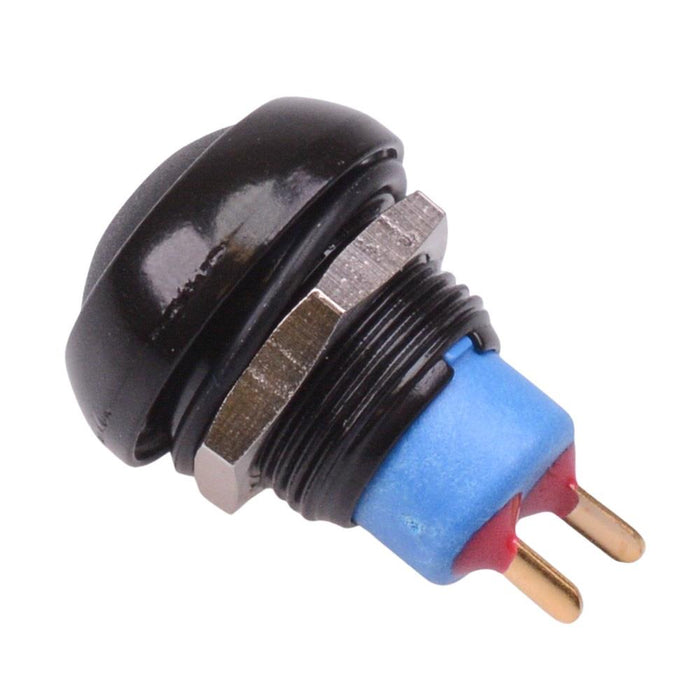

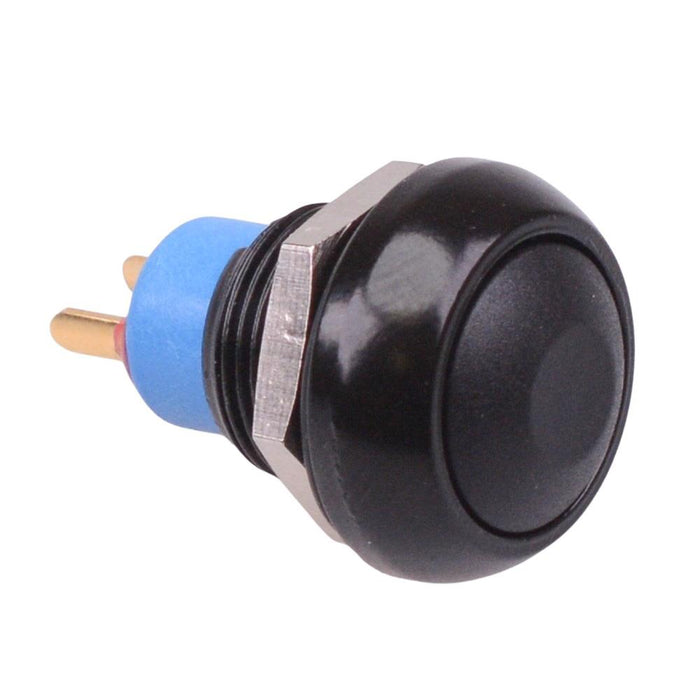

IPR3SAD2X1207 APEM Black Momentary Round 12mm Push Button Switch SPST IP67

by APEM
SKU 489998

MPN: IPR3SAD2X1207

Availability:
147 in stock
Original price £14.47 - Original price £14.47
Original price
£14.47
£14.47 - £14.47
Current price £14.47
The IPR3SAD2X1207 is a black momentary push button switch with a 12mm bushing and compact package sealed to IP67. The switch features solder lug terminals and SPST contacts, suitable for applications in harsh environments.

  • Momentary operation
  • SPST contacts
  • 12mm bushing
  • Sealed to IP67
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Gold plated silver contacts
  • Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC
  • Panel thickness: 1.5-4mm
  • Back of panel space requirement: 17.5mm minimum
  • Dimensions: 25.1 x 17.5mm (length x diameter)
  • Specification
    Actuation Momentary
    Colour Black
    Contact Configuration SPST
    Contact Rating 0.5A 28VDC, 0.2A 48VDC
    Current Rating 0.5A @ 28VDC
    Illuminated No
    Illumination Colour Non Illuminated
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Force 4N
    Operating Temperature -40°C to +85°C
    Panel Cut Out 13.6mm
    Panel Thickness 1.5-4mm
    Product Series IP
    Protection Level IP67
    Switch Operation Off-(On)
    Terminal Type Solder
    Voltage Rating 48VDC
