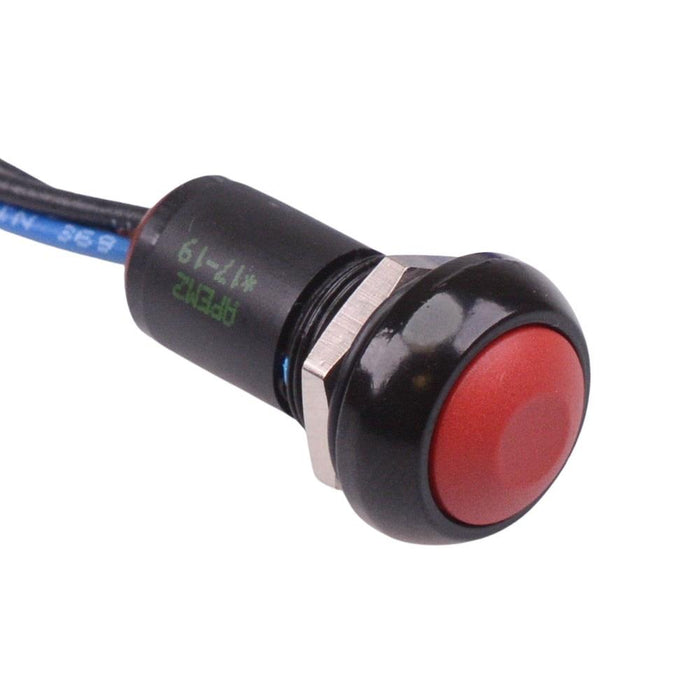

IPR5FAD6 APEM Red Momentary NO/NC Prewired Push Button Switch IP67
by APEM
SKU 490002
MPN: IPR5FAD6
Availability:
566 in stock
Save 8%
Original price
£17.50
Original price
£17.50
-
Original price
£17.50
Original price
£17.50
Current price
£16.10
£16.10
-
£16.10
Current price
£16.10
The IPR5FAD6 is a red momentary push button switch with a 12mm bushing and compact package sealed to IP67. The switch features flying leads and NO/NC contacts, suitable for applications in harsh environments.
Momentary operation NO/NC contacts 12mm bushing Sealed to IP67 Panel cut-out: 13.6mm 500mm flying leads Rating: 0.5A 28VDC, 0.2A 48VDC, 0.5A 48VAC Gold plated silver contacts Panel thickness: 1.5-4mm Dimensions: 27.0 x 17.5mm (length x diameter)
Specification
| Actuation | Momentary |
| Colour | Red |
| Contact Configuration | NO/NC |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 28VDC, 0.2A 48VDC, 0.5A 48VAC |
| Current Rating | 5A |
| Illuminated | No |
| Material | Zinc Diecast |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 4N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-4mm |
| Product Series | IP |
| Protection Level | IP67 |
| Switch Operation | On-(On) |
| Terminal Type | Solder |
| Voltage Rating | 28VDC / 48VAC |
