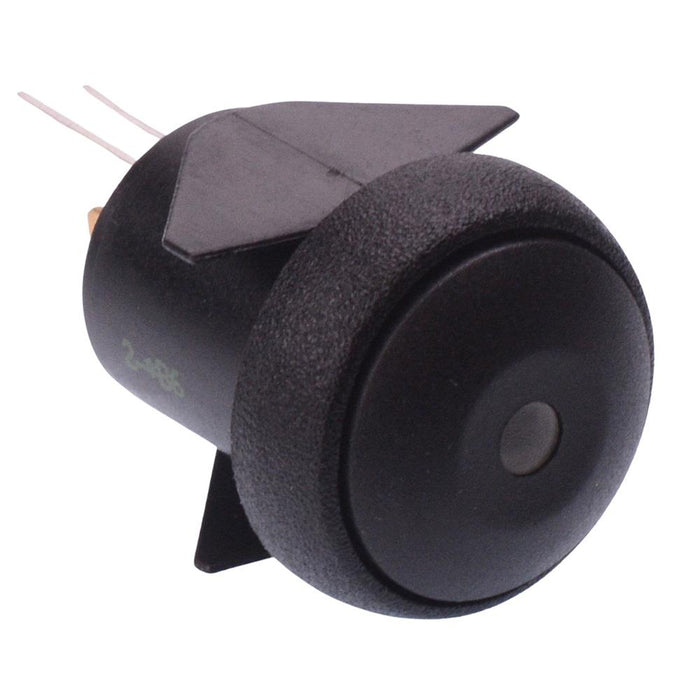

IQR1S422L0Y APEM Yellow LED Black Round Snap-In Latching 12mm Push Button Switch SPST

by APEM
SKU 487695

MPN: IQR1S422L0Y

Availability:
11 in stock
Original price £13.41 - Original price £13.41
Original price
£13.41
£13.41 - £13.41
Current price £13.41
The IQR1S422L0Y is a black latching round push button switch with a snap-in bushing and yellow LED. The switch features solder lug terminals and SPST contacts, suitable for applications including automotive.

  • Latching operation
  • Yellow LED
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Solder lug terminals
  • SPST contacts
  • Snap-in mounting
  • IP54 protection level
  • Panel cut-out: 13.6mm
  • Solder lug terminals
  • Rating: 4A 12VDC, 3A 48VDC
  • Panel thickness: 2.2mm max
  • Dimensions: 27.7 x 19.8mm (height x diameter)
  • Specification
    actuation Latching
    colour Black
    contact configuration SPST
    contact material Gold Plated Silver
    contact rating 4A 12VDC, 3A 48VDC, 1A 72VDC
    current rating 4A @ 12VDC
    illuminated Yes
    illumination colour Yellow
    illumination voltage 2.1V
    material Zinc Diecast
    mounting style Panel
    number of poles 1
    number of positions 2
    operating temperature -40°C to +85°C
    panel cut out 13.6mm
    panel thickness 1.5-5.5mm
    product series IP
    protection level IP67
    switch operation On-Off
    terminal type Solder
    voltage rating 72VDC
