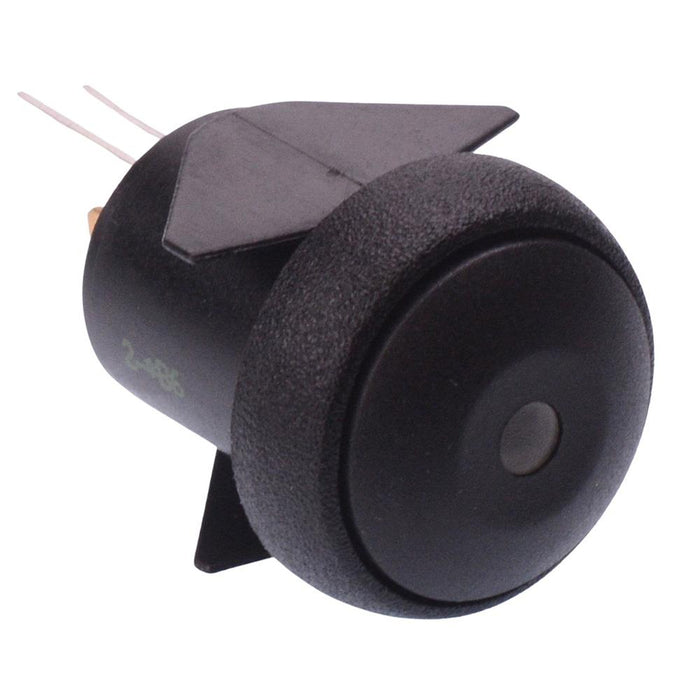

IQR1S422L0Y APEM Yellow LED Black Round Snap-In Latching 12mm Push Button Switch SPST
by APEM
SKU 487695
MPN: IQR1S422L0Y
Availability:
Out of stock
Sold out
Original price
£15.22
-
Original price
£15.22
Original price
£15.22
£15.22
-
£15.22
Current price
£15.22
The IQR1S422L0Y is a black latching round push button switch with a snap-in bushing and yellow LED. The switch features solder lug terminals and SPST contacts, suitable for applications including automotive.
Latching operation Yellow LED LED forward voltage: 2.1V LED forward current: 20mA Solder lug terminals SPST contacts Snap-in mounting IP54 protection level Panel cut-out: 13.6mm Solder lug terminals Rating: 4A 12VDC, 3A 48VDC Panel thickness: 2.2mm max Dimensions: 27.7 x 19.8mm (height x diameter)
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 4A 12VDC, 3A 48VDC, 1A 72VDC |
| Current Rating | 4A @ 12VDC |
| Illuminated | Yes |
| Illumination Colour | Yellow |
| Illumination Voltage | 2.1VDC |
| Material | Zinc Diecast |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 13.6mm |
| Panel Thickness | 1.5-5.5mm |
| Product Series | IP |
| Protection Level | IP67 |
| Switch Operation | On-Off |
| Terminal Type | Solder |
| Voltage Rating | 72VDC |
