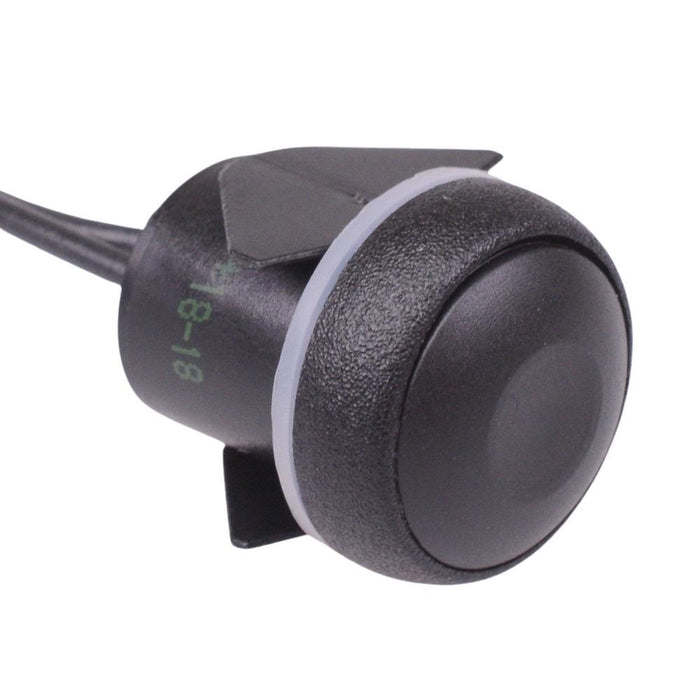

IQR3F422X1171-127 APEM Black Momentary NO Round 16mm Push Button Switch SPST IP54

by APEM
SKU 490003

MPN: IQR3F422X1171-127

Availability:
15 in stock
Original price £10.26 - Original price £10.26
Original price
£10.26
£10.26 - £10.26
Current price £10.26
The IQR3F422X1171-127 is a round sealed push button switch by APEM, featuring NO momentary contacts and 16mm bushing. The switch features snap-in mounting for easy installation and tactile feedback when pressed. The switch is suitable for a wide range of panel mount applications including automotive and industrial.

  • Snap-in mounting
  • Tactile feedback
  • Sealed to IP54
  • Rating: 200mA 48VDC
  • Panel thickness: 2.2mm max
  • Panel cut-out: 15.9mm
  • 500mm flying leads
  • Gold plated silver contacts
  • Specification
    Actuation Momentary
    Colour Black
    Contact Configuration SPST
    Contact Material Gold Plated Silver
    Contact Rating 200mA 48VDC
    Current Rating 0.2A
    Illuminated No
    Material PA66
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Force 4N
    Operating Temperature -40°C to +85°C
    Panel Cut Out 15.9mm
    Panel Thickness 2.2mm
    Product Series IQ
    Protection Level IP54
    Switch Operation Off-(On)
    Terminal Type Flying Leads
    Voltage Rating 48VDC
