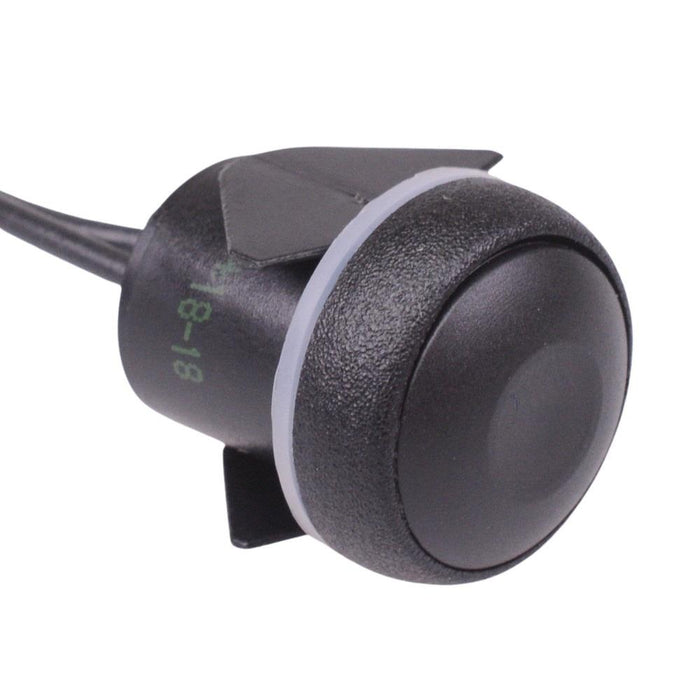

IQR3F422X1171-127 APEM Black Momentary NO Round 16mm Push Button Switch SPST IP54
by APEM
SKU 490003
MPN: IQR3F422X1171-127
Availability:
14 in stock
Original price
£10.26
-
Original price
£10.26
Original price
£10.26
£10.26
£10.26
-
£10.26
Current price
£10.26
The IQR3F422X1171-127 is a round sealed push button switch by APEM, featuring NO momentary contacts and 16mm bushing. The switch features snap-in mounting for easy installation and tactile feedback when pressed. The switch is suitable for a wide range of panel mount applications including automotive and industrial.
Snap-in mounting Tactile feedback Sealed to IP54 Rating: 200mA 48VDC Panel thickness: 2.2mm max Panel cut-out: 15.9mm 500mm flying leads Gold plated silver contacts
Specification
| Actuation | Momentary |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 200mA 48VDC |
| Current Rating | 0.2A |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 4N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 15.9mm |
| Panel Thickness | 2.2mm |
| Product Series | IQ |
| Protection Level | IP54 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 48VDC |
