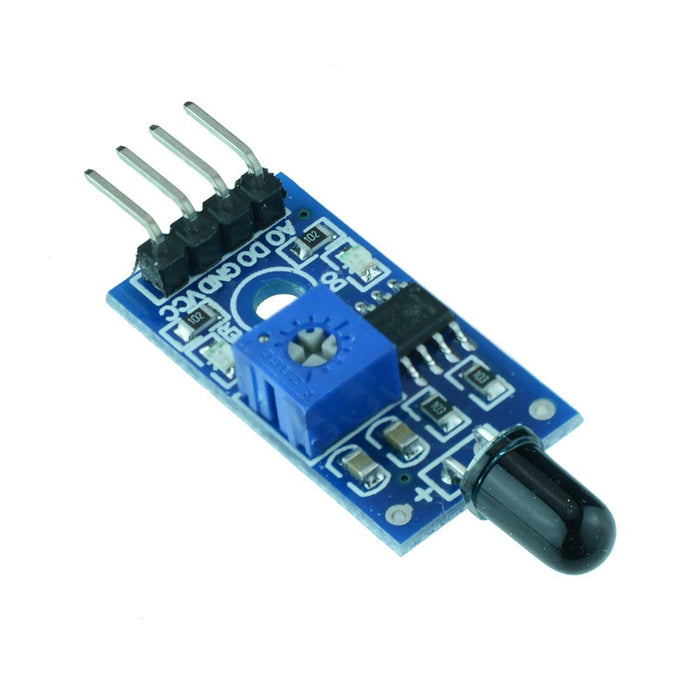

IR Infrared Flame Detector Sensor Module
SKU 552412
MPN: 552412
Availability:
27 in stock
Original price
£0.89
-
Original price
£0.89
Original price
£0.89
£0.89
-
£0.89
Current price
£0.89
Infrared flame detector module suitable for use with a Arduino, Raspberry Pi and other microcontrollers. The module is capable of detecting light with a wavelength range from 760nm to 1100nm, suitable for use with robotics and flame detection systems.
The analog signal pin provides an output based on the level of radiation available to the sensor. The digital signal pin outputs HIGH when the level goes above the trigger level and low when below it. The trigger level can be adjusted via the onboard potentiometer. The module will output HIGH values when detecting light and LOW values when no light is detected. The module features an LED which illuminates when the sensor is detecting above the trigger level.
3.3V - 5V input voltage Adjustable trigger level Digital and analog output Dimensions: 39 x 16.5mm
Pinout
VCC
GND
Digital Output
Analog Output
The analog signal pin provides an output based on the level of radiation available to the sensor. The digital signal pin outputs HIGH when the level goes above the trigger level and low when below it. The trigger level can be adjusted via the onboard potentiometer. The module will output HIGH values when detecting light and LOW values when no light is detected. The module features an LED which illuminates when the sensor is detecting above the trigger level.
Pinout
VCC
GND
Digital Output
Analog Output
Specification
Back Order Lead Time | 30 Days |
