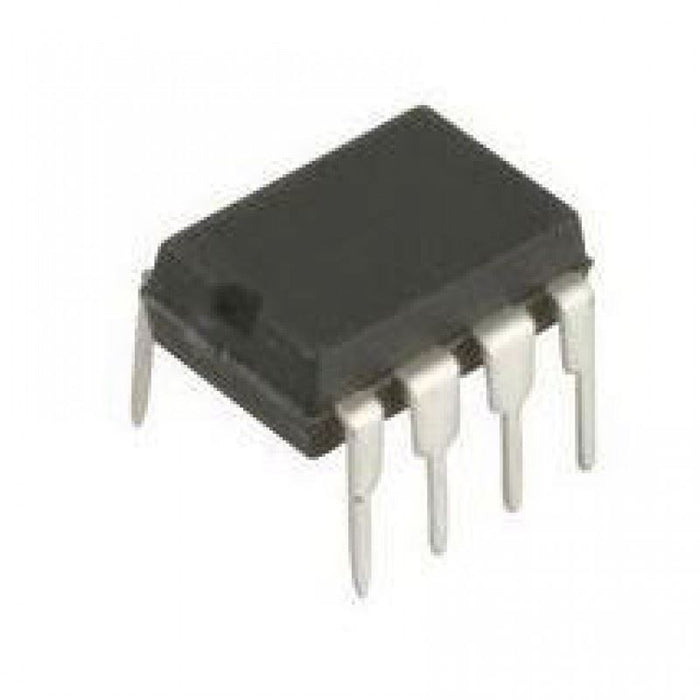

IR2153PBF Dual Half Bridge MOSFET Power Driver 10V to 16.8V DIP-8

SKU 480933

MPN: IR2153PBF

Availability:
7 in stock
Original price £5.58 - Original price £5.58
Original price
£5.58 Inc VAT
£5.58 - £5.58
Current price £5.58 Inc VAT
The IR2153PBF is an improved version of the popular IR2155 and IR2151 gate driver ICs, and incorporates a high voltage half-bridge gate driver with a front end oscillator similar to the industry standard CMOS 555 timer. The IR2153 provides more functionality and is easier to use than previous ICs. A shutdown feature has been designed into the CT pin, so that both gate driver outputs can be disabled using a low voltage control signal. In addition, the gate driver output pulse widths are the same once the rising undervoltage lockout threshold on VCC has been reached, resulting in a more stable profile of frequency vs time at startup.

  • Integrated 600V half-bridge gate driver
  • 15.6V zener clamp on Vcc
  • True micropower start up
  • Tighter initial deadtime control
  • Low temperature coefficient deadtime
  • Shutdown feature (1/6th Vcc) on CT pin
  • Lower power level-shifting circuit
  • Constant LO, HO pulse widths at startup
  • Lower di/dt gate driver for better noise immunity
  • Low side output in phase with RT
  • Excellent latch immunity on all inputs and outputs
  • ESD protection on all leads
  • Specification
    Back order lead time 5 Days
    Function Function
    Number of channels Number of Channels
    Package DIL-8
    Supply voltage 10V-16.8V
