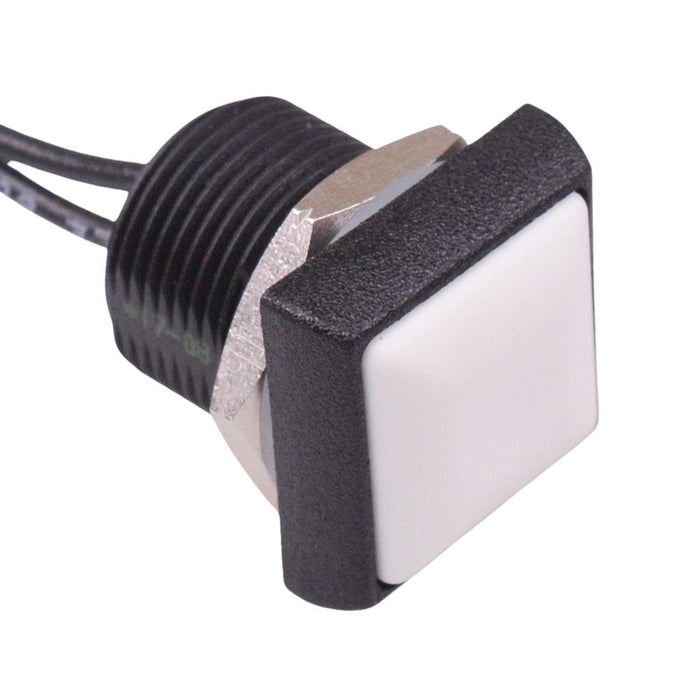

IRC3F472 APEM White Square 16mm Momentary NO Push Button Switch Prewired IP67
by APEM
SKU 490005
MPN: IRC3F472
Availability:
Only 2 left!
Original price
£15.00
-
Original price
£15.00
Original price
£15.00
Inc VAT
£15.00
-
£15.00
Current price
£15.00
Inc VAT
The IRC3F472 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features gold plated silver contacts is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.
Button colour: white Panel cut-out: 16.2mm Contacts: momentary NO Terminals: 500mm flying leads Contact rating: 200mA 48VDC Gold plated silver contacts Protection rating: IP67 Maximum panel thickness: 8mm Dimensions: 19.8 x 19.8 x 30.0mm (length x width x height)
Specification
| Actuation | Momentary |
| Colour | White |
| Contact configuration | SPST |
| Contact material | Gold Plated Silver |
| Contact rating | 200mA 48VDC |
| Current rating | 0.2A |
| Illuminated | No |
| Material | PA66 |
| Moq | 1 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating force | 4N |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 16.2mm |
| Panel thickness | 8mm |
| Product series | IR |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Flying Leads |
| Voltage rating | 48VDC |
