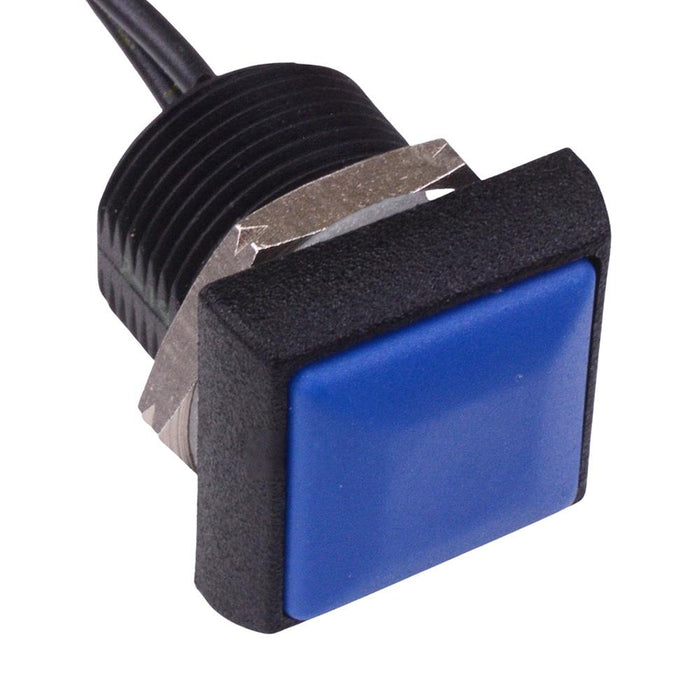

IRC3F4B2 APEM Dark Blue Square 16mm Momentary NO Push Button Switch Prewired IP67

by APEM
SKU 487620

MPN: IRC3F4B2

Availability:
40 in stock
Original price £16.19 - Original price £16.19
Original price
£16.19
£16.19 - £16.19
Current price £16.19
The IRC3F4B2 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

  • Button colour: dark blue
  • Panel cut-out: 16.2mm
  • Contacts: momentary NO
  • Terminals: 500mm flying leads
  • Contact rating: 200mA 48VDC
  • Protection rating: IP67
  • Maximum panel thickness: 8mm
  • Dimensions: 19.8 x 19.8 x 30.0mm (length x width x height)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Dark Blue
    Contact Configuration SPST
    Contact Material Gold Plated Silver
    Contact Rating 0.2A 48VDC
    Current Rating 0.2A
    Electrical Life 500,000 Cycles
    Illuminated No
    Illumination Colour Non Illuminated
    Material Polyamide
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 16.2mm
    Panel Thickness 8mm
    Product Series IR
    Protection Level IP67
    Switch Operation Off-(On)
    Terminal Type Flying Leads
    Voltage Rating 48VDC
