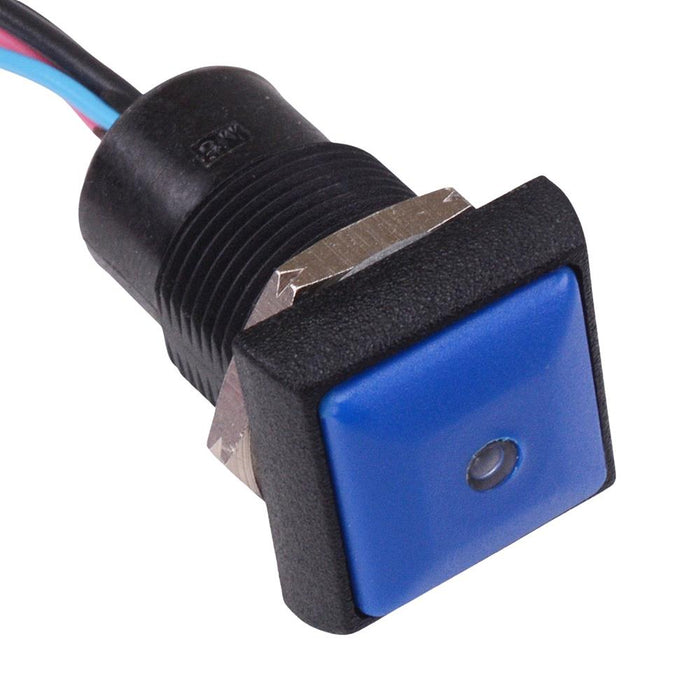

IRC3F4B2L0B APEM Blue LED Blue Button Square 16mm Momentary NO Push Button Switch Prewired IP67
by APEM
SKU 487483
MPN: IRC3F4B2L0B
Availability:
46 in stock
Original price
£10.51
-
Original price
£10.51
Original price
£10.51
£10.51
-
£10.51
Current price
£10.51
The IRC3F4B2L0B is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.
Button colour: dark blue LED colour: blue LED forward voltage: 3.2V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: momentary NO Terminals: 500mm flying leads Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 8mm Dimensions: 19.8 x 19.8 x 30.0mm (length x width x height)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Blue |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 0.2A 48VDC |
| Current Rating | 0.2A |
| Electrical Life | 500,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Illumination Voltage | 3.2VDC |
| Material | Polyamide |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 8mm |
| Product Series | IR |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Flying Leads |
| Voltage Rating | 48VDC |
