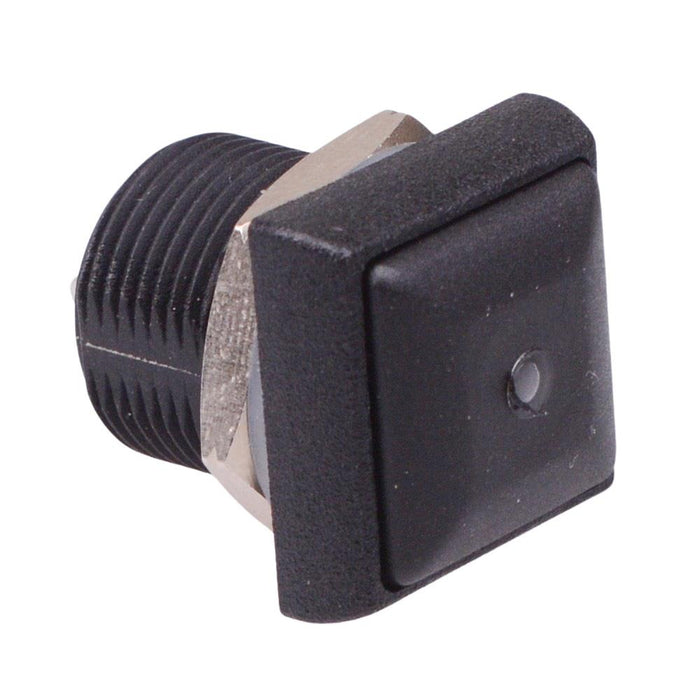

IRC3S422L0B APEM Blue LED Black Button Square 16mm Momentary NO Push Button Switch IP67
by APEM
SKU 490006
MPN: IRC3S422L0B
Availability:
22 in stock
Original price
£15.64
-
Original price
£15.64
Original price
£15.64
£15.64
£15.64
-
£15.64
Current price
£15.64

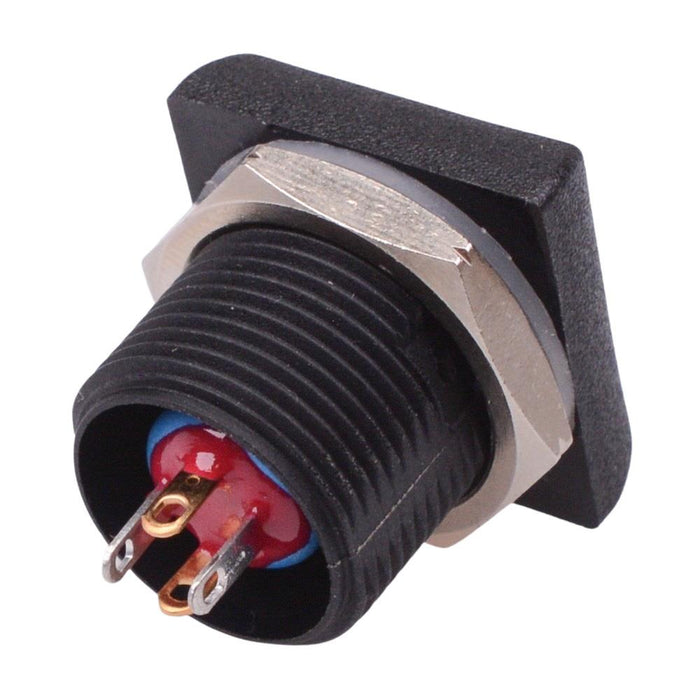

The IRC3S422L0B is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features LED illumination and solder lug contacts rated up to 200mA 48VDC. The switch is suitable for applications including automotive and marine.
Button colour: black LED colour: blue LED forward voltage: 3.2V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: momentary NO Terminals: solder lug Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 8mm Dimensions: 19.8 x 19.8 x 26.3mm (length x width x height)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 120 |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 200mA 48VDC |
| Current Rating | 0.2A |
| Illuminated | Yes |
| Illumination Colour | Blue |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 4N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 8mm |
| Product Series | IR |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VDC |
