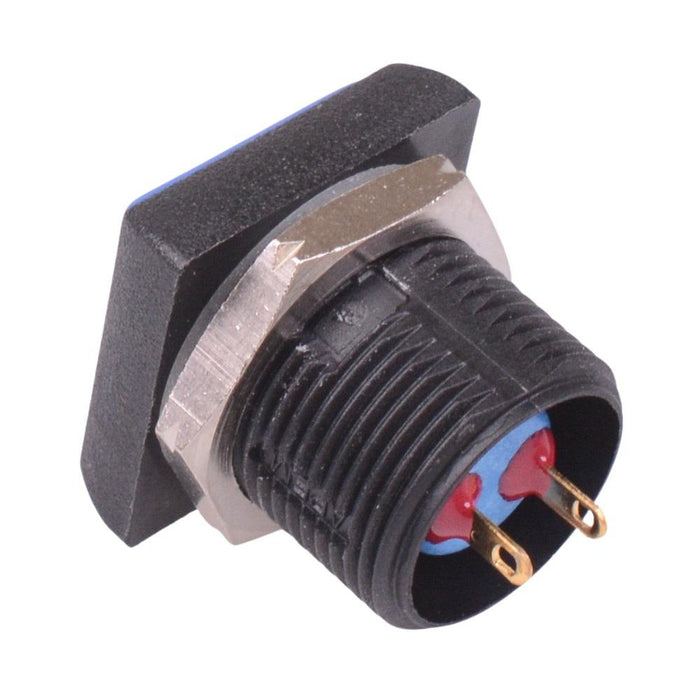

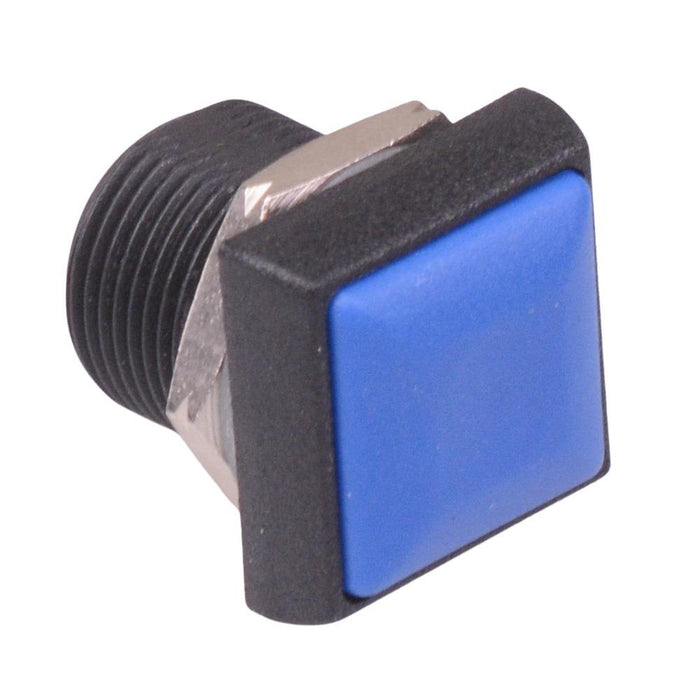

IRC3S4B2 APEM Dark Blue Square 16mm Momentary NO Push Button Switch IP67

by APEM
SKU 490010

MPN: IRC3S4B2

Availability:
43 in stock
Original price £14.47 - Original price £14.47
Original price
£14.47
£14.47 - £14.47
Current price £14.47
The IRC3S4B2 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and solder lug contacts rated up to 200mA 48VDC. The switch is suitable for applications including automotive and marine.

  • Button colour: dark blue
  • Panel cut-out: 16.2mm
  • Contacts: momentary NO
  • Terminals:solder lug contacts
  • Contact rating: 200mA 48VDC
  • Protection rating: IP67
  • Maximum panel thickness: 8mm
  • Dimensions: 19.8 x 19.8 x 26.3mm (length x width x height)
  • Specification
    Actuation Momentary
    Colour Dark Blue
    Contact Configuration SPST
    Contact Material Gold Plated Silver
    Contact Rating 200mA 48VDC
    Current Rating 0.2A
    Illuminated No
    Material PA66
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Force 4N
    Operating Temperature -40°C to +85°C
    Panel Cut Out 16.2mm
    Panel Thickness 8mm
    Product Series IR
    Protection Level IP67
    Switch Operation Off-(On)
    Terminal Type Solder
    Voltage Rating 48VDC
