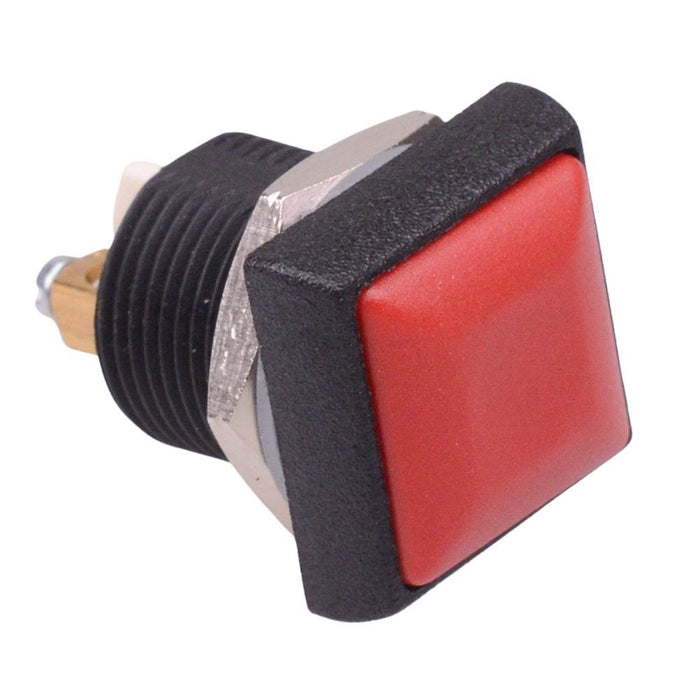

IRC3V262 APEM Red Square 16mm Momentary NO Push Button Switch Screw Terminals IP67
by APEM
SKU 490011
MPN: IRC3V262
Availability:
19 in stock
Original price
£16.69
-
Original price
£16.69
Original price
£16.69
£16.69
-
£16.69
Current price
£16.69

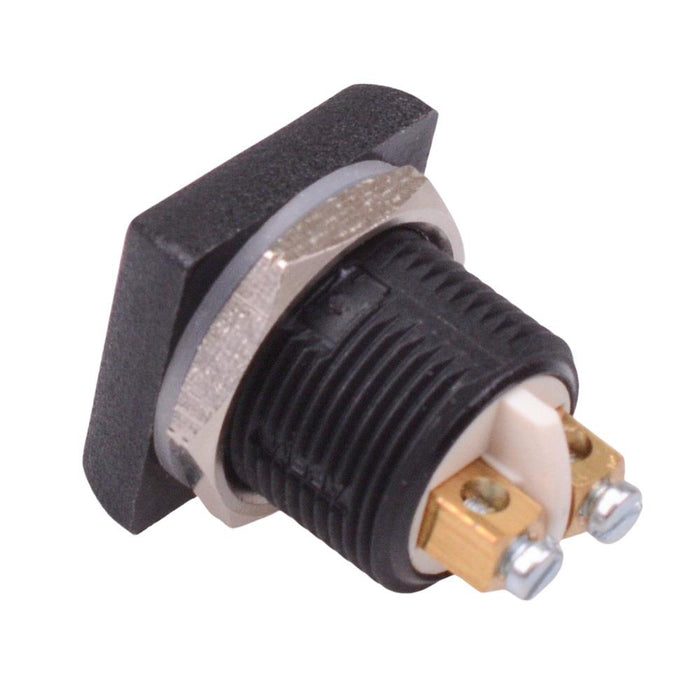

The IRC3V262 is a square sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and screw contacts rated up to 4A 48VDC. The switch is suitable for applications including automotive and marine.
Button colour: red Panel cut-out: 16.2mm Contacts: momentary NO Terminals: screw Contact rating: 4A 48VDC Protection rating: IP67 Maximum panel thickness: 8mm Dimensions: 19.8 x 19.8 x 30.5mm (length x width x height)
Specification
| Actuation | Momentary |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Silver |
| Contact Rating | 4A 48VDC |
| Current Rating | 4A |
| Illuminated | No |
| Material | PA66 |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 4N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 8mm |
| Product Series | IR |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Screw |
| Voltage Rating | 48VDC |
