IRC7Z2B2 APEM Dark Blue Square 16mm Momentary Push Button Switch SPDT 5A IP67

by APEM
SKU 487572

MPN: IRC7Z2B2

Availability:
50 in stock
Original price £7.41 - Original price £7.41
Original price
£7.41
£7.41 - £7.41
Current price £7.41

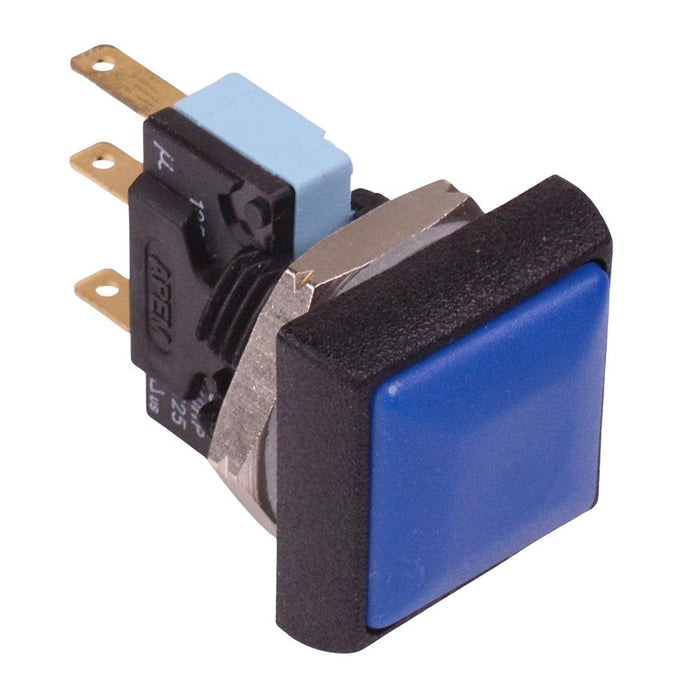

The IRC7Z2B2 is a square sealed momentary push button switch with a 16mm bushing and normally open/closed contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

  • Button colour: dark blue
  • Panel cut-out: 16.2mm
  • Contacts: momentary NO + NC
  • Terminals:quick connect / solder lug contacts
  • Contact rating: 5A 250VAC
  • Protection rating: IP67
  • Maximum panel thickness: 3mm
  • Dimensions: 19.8 x 19.8 x 33.6mm (length x width x height)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Dark Blue
    Contact Configuration SPDT
    Contact Material Gold Plated Silver
    Contact Rating 5A 250VAC
    Current Rating 5A
    Electrical Life 500,000 Cycles
    Illuminated No
    Illumination Colour Non Illuminated
    Material Polyamide
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 16.2mm
    Panel Thickness 3mm
    Product Series IR
    Protection Level IP67
    Switch Operation On-(On)
    Terminal Type Quick Connect
    Voltage Rating 250VAC
