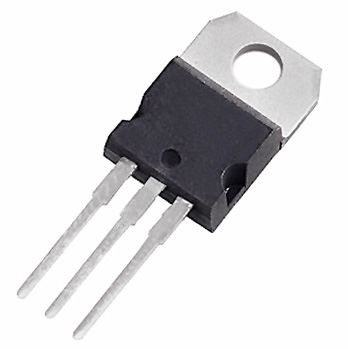

IRF630 MOSFET 200V 9A N Channel TO220

by ST
SKU 551644


Only 4 left!
Original price £1.05 - Original price £1.05
Original price
£1.05 Inc VAT
£1.05 - £1.05
Current price £1.05 Inc VAT

The IRF630 MOSFET Transistor is an N-Channel 200V transistor supplied in TO220 packaging. This power MOSFET is designed using consolidated strip layout based mesh overlay process. This technology matches and improves the performance compared with standard parts. This transistor can be utilised for switching applications. For further technical specifications please refer to the attached datasheet.

  • 200 Volt VDS
  • RDS(on) 400 mOhm
  • Gate Source Voltage 4V
  • N Channel 200V
  • Extremely high dv/dt capability
  • Very low intrinsic capacitances
  • Minimised gate charge
  • MOSFET 200V 9A TO220
Back order lead time 5 Days
Continuous drain current 9A
Drain source on resistance 400MΩ
Drain source voltage 200V
Input capacitance 700pF
Maximum gate source voltage 4V
Maximum operating temperature 150°C
Mounting type Through Hole
Package TO220
Power dissipation 310W
Type N-Channel
