IRR1F462 APEM Red Round 16mm Latching Push Button Switch Prewired IP67
by APEM
SKU 487421
MPN: IRR1F462
Availability:
Out of stock
Sold out
Original price
£16.19
-
Original price
£16.19
Original price
£16.19
£16.19
-
£16.19
Current price
£16.19

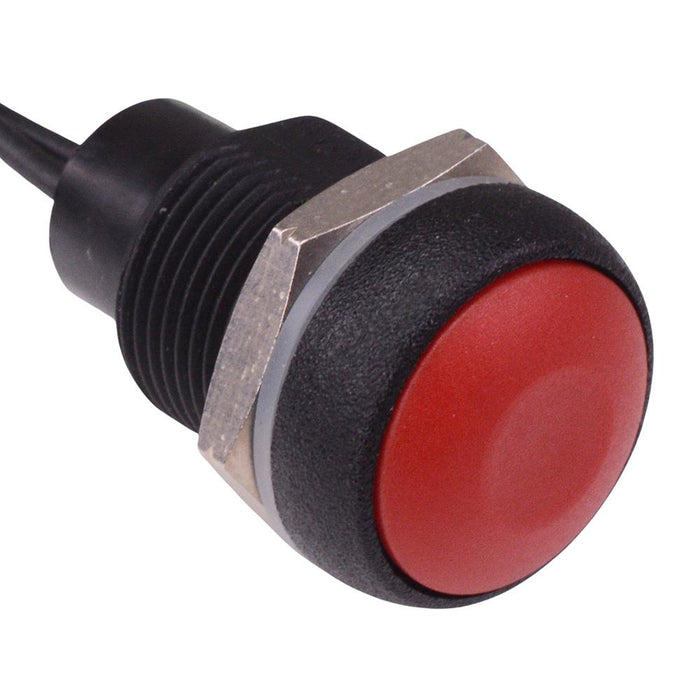

The IRR1F462 is a round sealed latching push button switch with a 16mm bushing and SPST contacts. The switch features IP67 protection rating and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.
Button colour: red Panel cut-out: 16.2mm Contacts: latching SPST Terminals: 500mm flying leads Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 8mm Dimensions: 19.8 x 31mm (diameter x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Colour | Red |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 0.2A 48VDC |
| Current Rating | 0.2A |
| Electrical Life | 500,000 Cycles |
| Illuminated | No |
| Illumination Colour | Non Illuminated |
| Material | Polyamide |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 8mm |
| Product Series | IR |
| Protection Level | IP67 |
| Switch Operation | On-Off |
| Terminal Type | Flying Leads |
| Voltage Rating | 48VDC |
