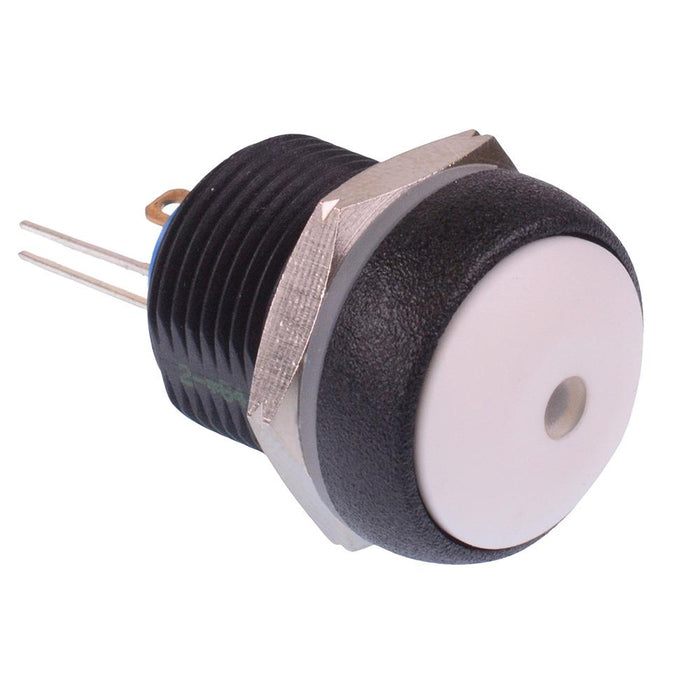

IRR1S472L0Y APEM Yellow LED White Button Round 16mm Latching Push Button Switch IP67

by APEM
SKU 488177

MPN: IRR1S472L0Y

Availability:
Only 4 left!
Original price £15.30 - Original price £15.30
Original price
£15.30
£15.30 - £15.30
Current price £15.30
The IRR1S472L0Y is a round sealed latching push button switch with a 16mm bushing and SPST contacts. The switch features IP67 protection rating and solder lug terminals. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.

  • Button colour: white
  • LED colour: yellow
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Panel cut-out: 16.2mm
  • Contacts: latching SPST
  • Terminals: solder lug
  • Contact rating: 200mA 48VDC
  • Protection rating: IP67
  • Maximum panel thickness: 8mm
  • Dimensions: 19.8 x 31mm (diameter x height)
  • Specification
    Actuation Latching
    Back Order Lead Time 10 Days
    Colour White
    Contact Configuration SPST
    Contact Material Gold Plated Silver
    Contact Rating 0.2A 48VDC
    Current Rating 0.2A
    Electrical Life 500,000 Cycles
    Illuminated Yes
    Illumination Colour Yellow
    Illumination Voltage 2.1VDC
    Material Polyamide
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 16.2mm
    Panel Thickness 8mm
    Product Series IR
    Protection Level IP67
    Switch Operation On-Off
    Terminal Type Solder
    Voltage Rating 48VDC
