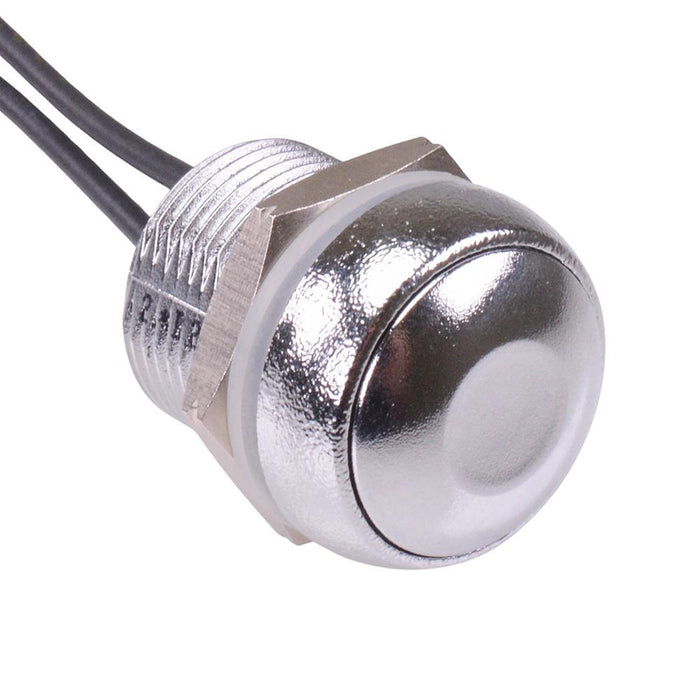

IRR3F488 APEM Chrome Round 16mm Momentary Push Button Switch Prewired IP67
by APEM
SKU 487315
MPN: IRR3F488
Availability:
91 in stock
Original price
£12.15
-
Original price
£12.15
Original price
£12.15
Inc VAT
£12.15
-
£12.15
Current price
£12.15
Inc VAT
The IRR3F488 is a round sealed momentary push button switch with a 16mm bushing and normally open SPST contacts. The switch features IP67 protection rating and is prewired with 500mm flying leads. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.
Button colour: chrome Panel cut-out: 16.2mm Contacts: momentary normally open Terminals: 500mm flying leads Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 8mm Dimensions: 19.8 x 21.8mm (diameter x height)
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Colour | Chrome |
| Contact configuration | SPST |
| Contact material | Gold Plated Silver |
| Contact rating | 0.2A 48VDC |
| Current rating | 0.2A |
| Electrical life | 500,000 Cycles |
| Illuminated | No |
| Illumination colour | Non Illuminated |
| Material | Polyamide |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 16.2mm |
| Panel thickness | 8mm |
| Product series | IR |
| Protection level | IP67 |
| Switch operation | Off-(On) |
| Terminal type | Flying Leads |
| Voltage rating | 48VDC |
