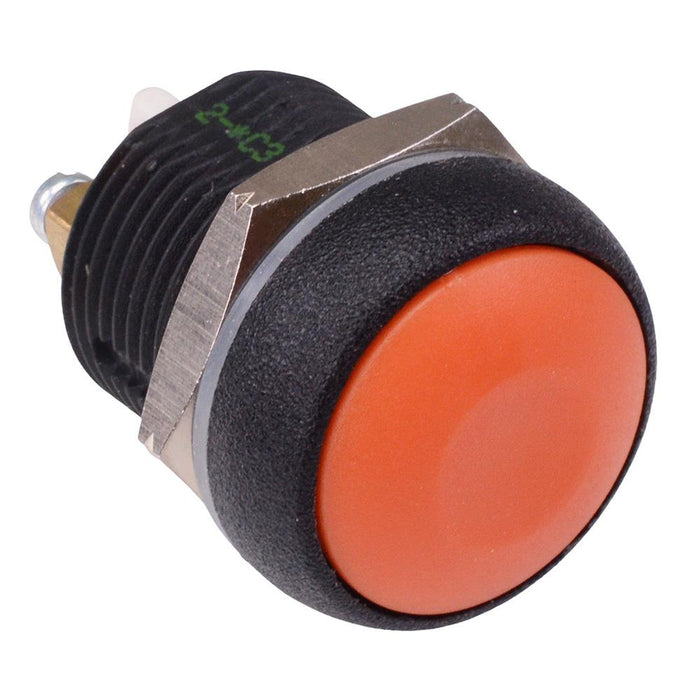

IRR3V292 APEM Orange Round 16mm Momentary NO Push Button Switch IP67
by APEM
SKU 487494
MPN: IRR3V292
Availability:
48 in stock
Original price
£13.38
-
Original price
£13.38
Original price
£13.38
£13.38
-
£13.38
Current price
£13.38
The IRR3V292 is a round sealed momentary push button switch with a 16mm bushing and normally open SPST contacts. The switch features IP67 protection rating and screw terminals. The switch contacts are rated to 200mA 48VDC, making it suitable for applications including automotive and marine.
Button colour: orange Panel cut-out: 16.2mm Contacts: momentary normally open Terminals:screw Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 8mm Dimensions: 19.8 x 30.5mm (diameter x height)
Specification
Actuation | Momentary |
Back Order Lead Time | 10 Days |
Colour | Orange |
Contact Configuration | SPST |
Contact Material | Gold Plated Silver |
Contact Rating | 0.2A 48VDC |
Current Rating | 0.2A |
Electrical Life | 500,000 Cycles |
Illuminated | No |
Illumination Colour | Non Illuminated |
Material | Polyamide |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 16.2mm |
Panel Thickness | 8mm |
Product Series | IR |
Protection Level | IP67 |
Switch Operation | Off-(On) |
Terminal Type | Screw |
Voltage Rating | 48VDC |
