IRR7Z2B2L0B APEM Blue LED Round 16mm Momentary NO/NC Push Button Switch SPDT 5A IP67

by APEM
SKU 490017

MPN: IRR7Z2B2L0B

Availability:
23 in stock
Original price £19.63 - Original price £19.63
Original price
£19.63
£19.63 - £19.63
Current price £19.63

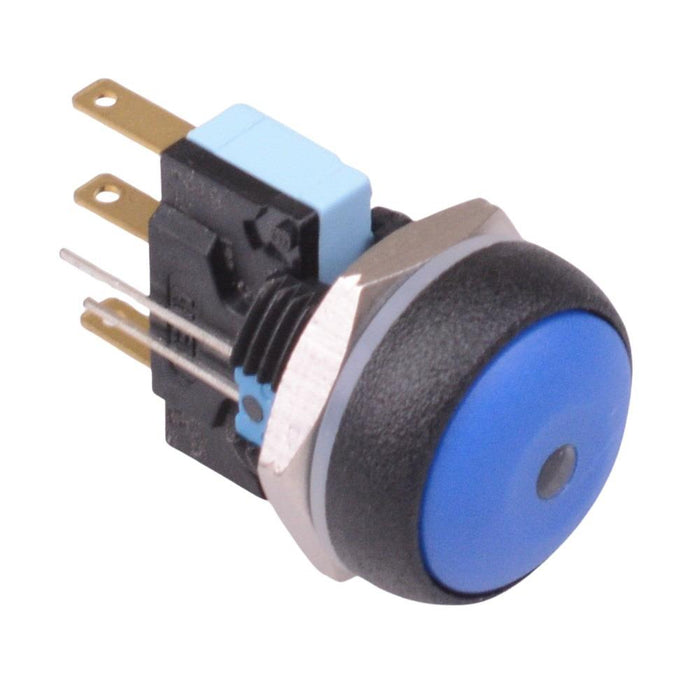

The IRR7Z2B2L0B is a round sealed momentary push button switch with a 16mm bushing and NO/NC contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

  • Button colour: dark blue
  • LED colour: blue
  • LED forward voltage: 3.2V
  • LED forward current: 20mA
  • Panel cut-out: 16.2mm
  • Contacts: NO/NC
  • Terminals: quick connect / solder lug contacts
  • Silver contacts
  • Contact rating: 5A 250VAC
  • Protection rating: IP67
  • Maximum panel thickness: 3mm
  • Dimensions: 19.8 x 33.6mm (diameter x height)
  • Specification
    Actuation Momentary
    Colour Blue
    Contact Configuration NO/NC
    Contact Material Silver
    Contact Rating 5A 250VAC
    Current Rating 5A
    Illuminated Yes
    Illumination Colour Blue
    Illumination Voltage 3.2V
    Material PA66
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Force 4N
    Operating Temperature -20°C to +85°C
    Panel Cut Out 16.2mm
    Panel Thickness 3mm
    Product Series IR
    Protection Level IP67
    Switch Operation On-(On)
    Terminal Type Quick Connect
    Voltage Rating 250VAC
