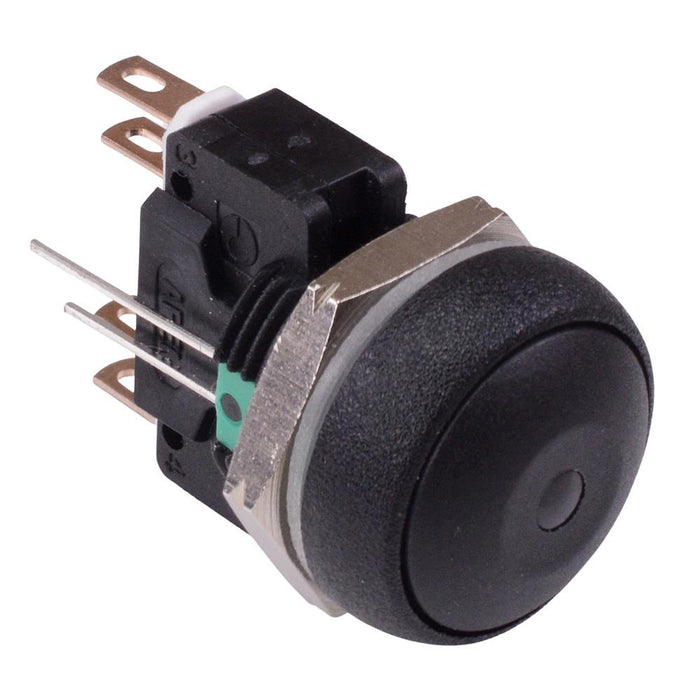

IRR8Z222L0G APEM Green LED Black Button Round 16mm Momentary Push Button Switch DPDT 5A IP67
by APEM
SKU 487344
MPN: IRR8Z222L0G
Availability:
93 in stock
Original price
£18.14
-
Original price
£18.14
Original price
£18.14
£18.14
-
£18.14
Current price
£18.14
The IRR8Z222L0G is a round sealed momentary push button switch with a 16mm bushing and DPDT contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.
Button colour: black LED colour: green LED forward voltage: 2.1V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: DPDT Terminals:quick connect / solder lug contacts Contact rating: 5A 250VAC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 19.8 x 31.65mm (diameter x height)
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Colour | Black |
| Contact Configuration | DPDT |
| Contact Material | Gold Plated Silver |
| Contact Rating | 5A 250VAC |
| Current Rating | 5A |
| Electrical Life | 500,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Green |
| Illumination Voltage | 2.1VDC |
| Material | Polyamide |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 3mm |
| Product Series | IR |
| Protection Level | IP67 |
| Switch Operation | On-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 250VAC |
