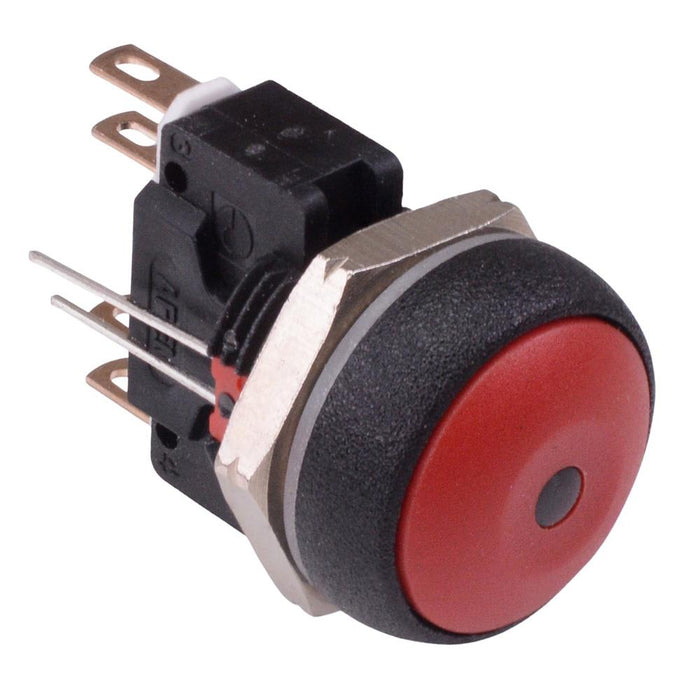

IRR8Z262L0S APEM Red LED Red Button Round 16mm Momentary Push Button Switch DPDT 5A IP67

by APEM
SKU 487527

MPN: IRR8Z262L0S

Availability:
39 in stock
Original price £18.14 - Original price £18.14
Original price
£18.14
£18.14 - £18.14
Current price £18.14
The IRR8Z262L0S is a round sealed momentary push button switch with a 16mm bushing and DPDT contacts. The switch features a removable microswitch providing a maximum rating of 5A 250VAC. This makes the switch ideal for applications including automotive and marine.

  • Button colour: red
  • LED colour: red
  • LED forward voltage: 2.1V
  • LED forward current: 20mA
  • Panel cut-out: 16.2mm
  • Contacts: DPDT
  • Terminals:quick connect / solder lug contacts
  • Contact rating: 5A 250VAC
  • Protection rating: IP67
  • Maximum panel thickness: 3mm
  • Dimensions: 19.8 x 31.65mm (diameter x height)
  • Specification
    Actuation Momentary
    Back Order Lead Time 10 Days
    Colour Red
    Contact Configuration DPDT
    Contact Material Gold Plated Silver
    Contact Rating 5A 250VAC
    Current Rating 5A
    Electrical Life 500,000 Cycles
    Illuminated Yes
    Illumination Colour Red
    Illumination Voltage 2.1VDC
    Material Polyamide
    Mounting Style Panel
    Number of Poles 2
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 16.2mm
    Panel Thickness 3mm
    Product Series IR
    Protection Level IP67
    Switch Operation On-(On)
    Terminal Type Quick Connect
    Voltage Rating 250VAC
