IZMR3S42N APEM Black Metal 16mm Round Momentary NO Push Button Switch IP67
by APEM
SKU 490019
MPN: IZMR3S42N
Availability:
195 in stock
Original price
£24.76
-
Original price
£24.76
Original price
£24.76
£28.07
£28.07
-
£28.07
Current price
£28.07

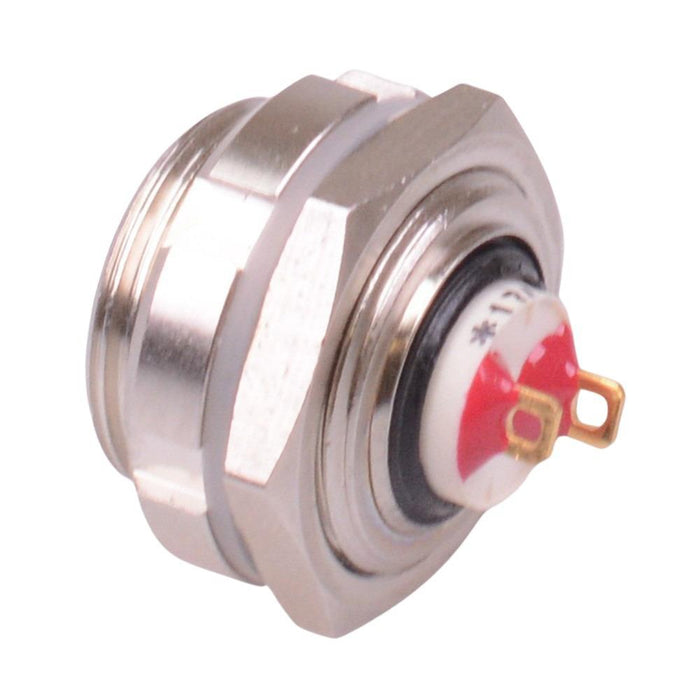

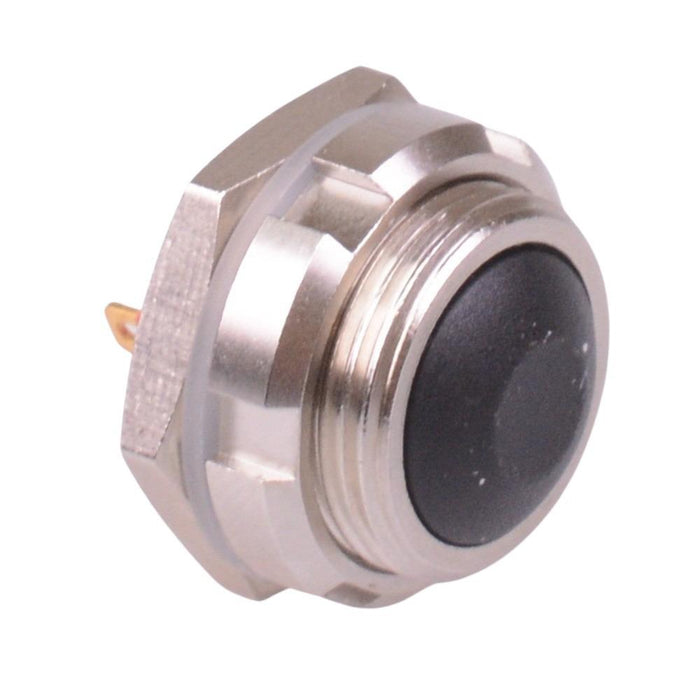

The IZMR3S42N is an illuminated rear mounting round sealed momentary push button switch with a 16mm bushing and SPST normally open contacts. The switch features IP67 protection rating and solder lug terminals. This makes the switch ideal for applications including automotive and marine.
Button colour: black Panel cut-out: 16.2mm Contacts: momentary SPST-NO Gold plated silver contacts Solder lug terminals Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 20 x 25.4mm (diameter x height)
Specification
| Actuation | Momentary |
| Colour | Black |
| Contact Configuration | SPST |
| Contact Material | Gold Plated Silver |
| Contact Rating | 200mA 48VDC |
| Current Rating | 0.2A |
| Electrical Life | 500,000 Cycles |
| Illuminated | No |
| Material | Nickel Plated Brass |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Force | 6N |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 16.2mm |
| Panel Thickness | 3mm |
| Product Series | IZ |
| Protection Level | IP67 |
| Switch Operation | Off-(On) |
| Terminal Type | Solder |
| Voltage Rating | 48VDC |
