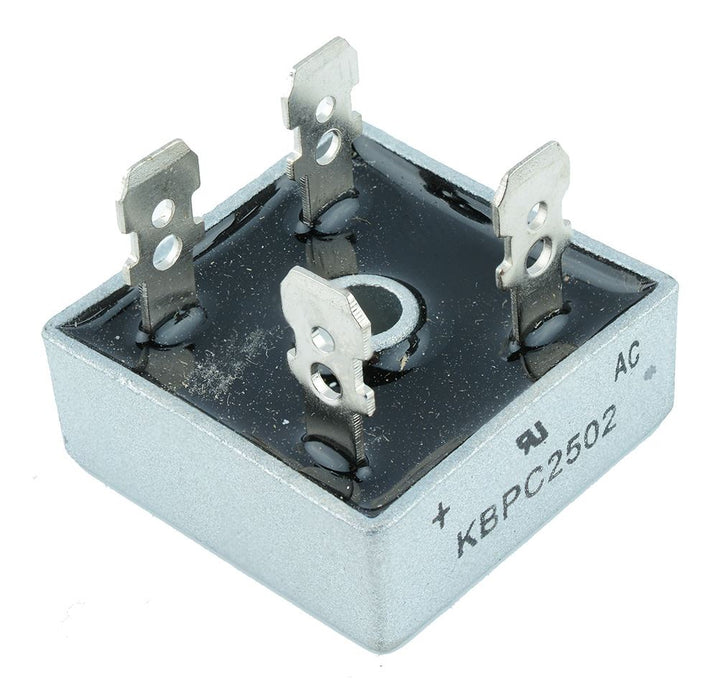

KBPC2502 Bridge Rectifier Diode 25A 200V
SKU 402062
MPN: KBPC2502
Availability:
134 in stock
Original price
£1.28
-
Original price
£1.28
Original price
£1.28
£1.28
£1.28
-
£1.28
Current price
£1.28
Silicone bridge rectifier diode rated up to 25A with a metal case and single hole fixing.
Low reverse leakage 200V maximum repetitive peak reverse voltage 25A maximum average forward rectified current 300A peak forward surge current 6.4 x 0.8mm fast-on terminals
Specification
| Average Rectified Current | 25A |
| Back Order Lead Time | 150 |
| Body Dimensions | 30 x 30 x 11.5mm (Length x Width x Height) |
| Maximum DC Blocking Voltage | 200V |
| Maximum Forward Voltage | 1.1V |
| Maximum RMS Voltage | 140V |
| MOQ | 1 |
| Mounting Style | Screw Mount |
| Operating Temperature | -65°C to 150°C |
| Package | Metal Case |
| Packaging | Bulk |
| Peak Reverse Voltage | 200V |
| Peak Surge Current | 300A |
