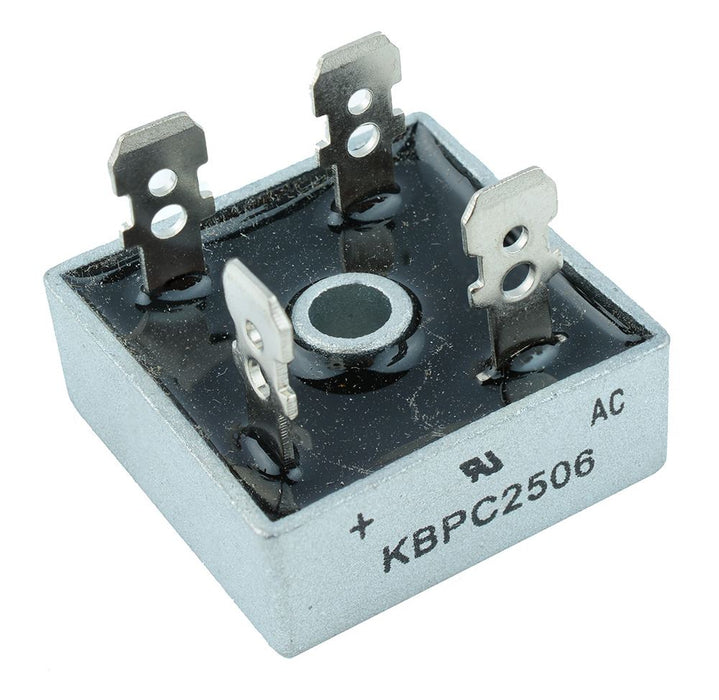

KBPC2506 Bridge Rectifier Diode 25A 600V

SKU 402063

MPN: KBPC2506

Availability:
90 in stock
Original price £1.30 - Original price £1.30
Original price
£1.30 Inc VAT
£1.30 - £1.30
Current price £1.30 Inc VAT
Silicone bridge rectifier diode rated up to 25A with a metal case and single hole fixing.

  • Low reverse leakage
  • 600V maximum repetitive peak reverse voltage
  • 25A maximum average forward rectified current
  • 300A peak forward surge current
  • 6.4 x 0.8mm fast-on terminals
  • Specification
    Average rectified current 25A
    Back order lead time 40 Days
    Body dimensions 30 x 30 x 11.5mm (Length x Width x Height)
    Maximum dc blocking voltage 600V
    Maximum forward voltage 1.1V
    Maximum rms voltage 420V
    Mounting style Screw Mount
    Operating temperature -65°C to 150°C
    Package Metal Case
    Packaging Bulk
    Peak reverse voltage 600V
    Peak surge current 300A
    Request a quote
