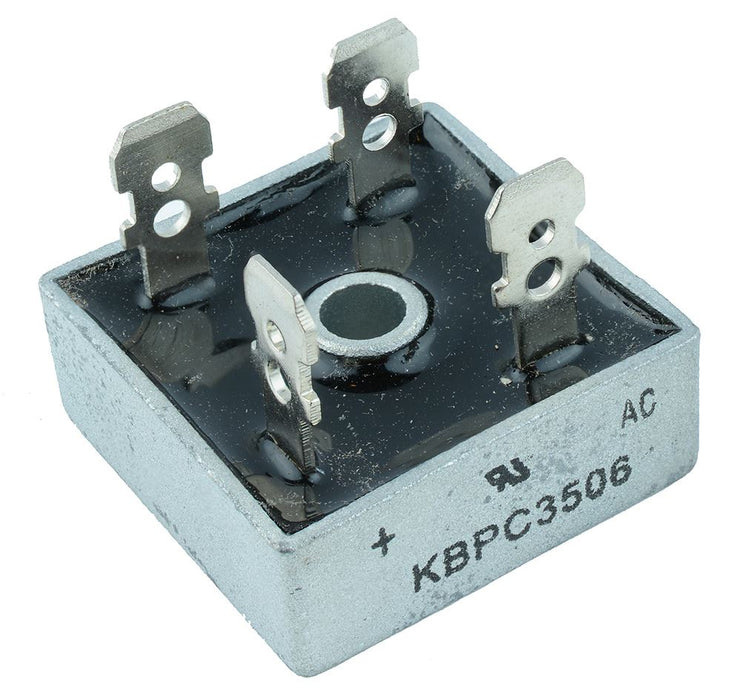

KBPC3506 Bridge Rectifier Diode 35A 600V
SKU 402065
MPN: KBPC3506
Availability:
525 in stock
Original price
£1.42
-
Original price
£1.42
Original price
£1.42
Inc VAT
£1.42
-
£1.42
Current price
£1.42
Inc VAT
Silicone bridge rectifier diode rated up to 35A with a metal case and single hole fixing.
Low reverse leakage 600V maximum repetitive peak reverse voltage 35A maximum average forward rectified current 400A peak forward surge current 6.4 x 0.8mm fast-on terminals
Specification
| Average rectified current | 35A |
| Back order lead time | 40 Days |
| Body dimensions | 30 x 30 x 11.5mm (Length x Width x Height) |
| Maximum dc blocking voltage | 600V |
| Maximum forward voltage | 1.1V |
| Maximum rms voltage | 420V |
| Mounting style | Screw Mount |
| Operating temperature | -65°C to 150°C |
| Package | Metal Case |
| Packaging | Bulk |
| Peak reverse voltage | 600V |
| Peak surge current | 400A |
