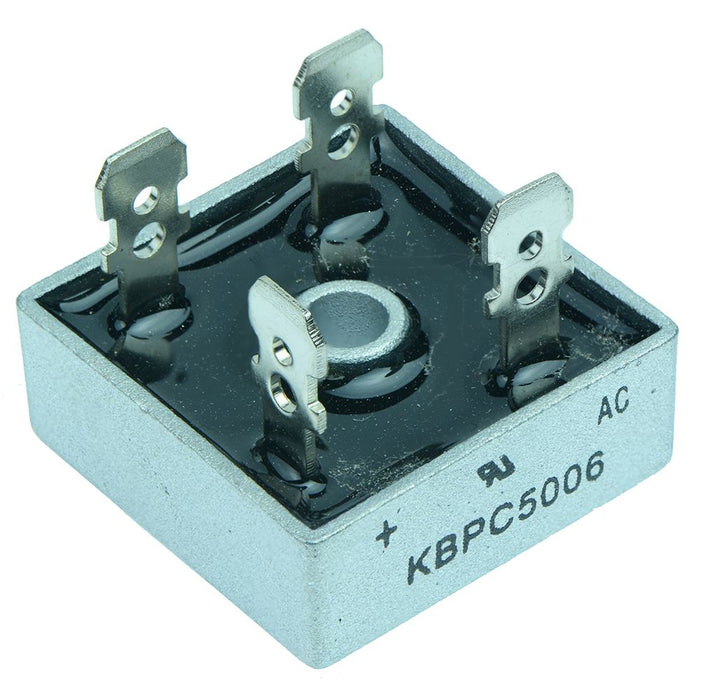

KBPC5006 Bridge Rectifier Diode 50A 600V
SKU 402066
MPN: KBPC5006
Availability:
488 in stock
Original price
£2.44
-
Original price
£2.44
Original price
£2.44
Inc VAT
£2.44
-
£2.44
Current price
£2.44
Inc VAT
Silicone bridge rectifier diode rated up to 50A with a metal case and single hole fixing.
Low reverse leakage 600V maximum repetitive peak reverse voltage 50A maximum average forward rectified current 600A peak forward surge current 6.4 x 0.8mm fast-on terminals
Specification
| Average rectified current | 50A |
| Back order lead time | 40 Days |
| Body dimensions | 30 x 30 x 11.5mm (Length x Width x Height) |
| Maximum dc blocking voltage | 600V |
| Maximum forward voltage | 1.1V |
| Maximum rms voltage | 420V |
| Mounting style | Screw Mount |
| Operating temperature | -65°C to 150°C |
| Package | Metal Case |
| Packaging | Bulk |
| Peak reverse voltage | 600V |
| Peak surge current | 600A |
