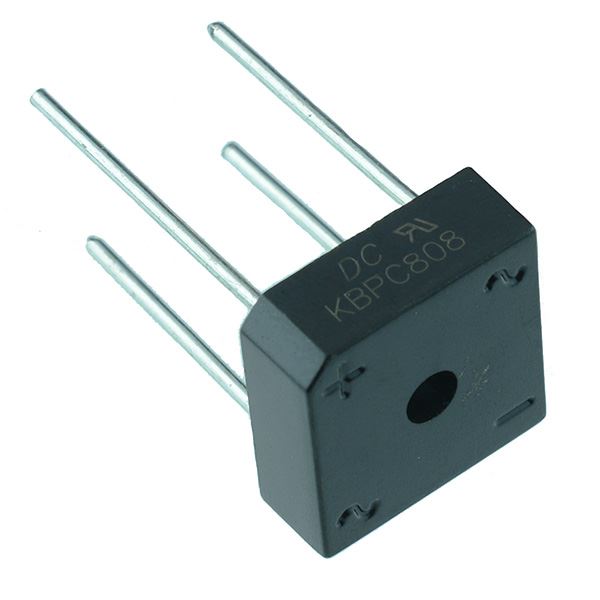

KBPC808 Bridge Rectifier Diode 8A 800V

SKU 552228

MPN: KBPC808

Availability:
32 in stock
Original price £1.23 - Original price £1.23
Original price
£1.23 Inc VAT
£1.23 - £1.23
Current price £1.23 Inc VAT
KBPC808 miniature bridge rectifier diode featuring 8A average forward current and 800V repetitive peak reverse voltage, housed in a flame retardant UL 94V-0 plastic case suitable for mounting to printed circuit boards.

  • 125A surge overload rating
  • Low forward voltage drop
  • Moulded plastic package
  • Dimensions: 19.0mm x 19.0mm x 7.0mm (Width x Length x Height)
  • Pitch: 12.7mm x 12.7mm
  • Specification
    Average rectified current 8A
    Back order lead time 5 Days
    Body dimensions 19.0mm x 19.0mm x 7.0mm (Width x Length x Height)
    Maximum dc blocking voltage 800V
    Maximum forward voltage 1.1V
    Maximum rms voltage 560V
    Mounting style Through Hole
    Operating temperature -55°C to 125°C
    Package KBPC-8/10
    Packaging Bulk
    Peak reverse voltage 800V
    Peak surge current 125A
