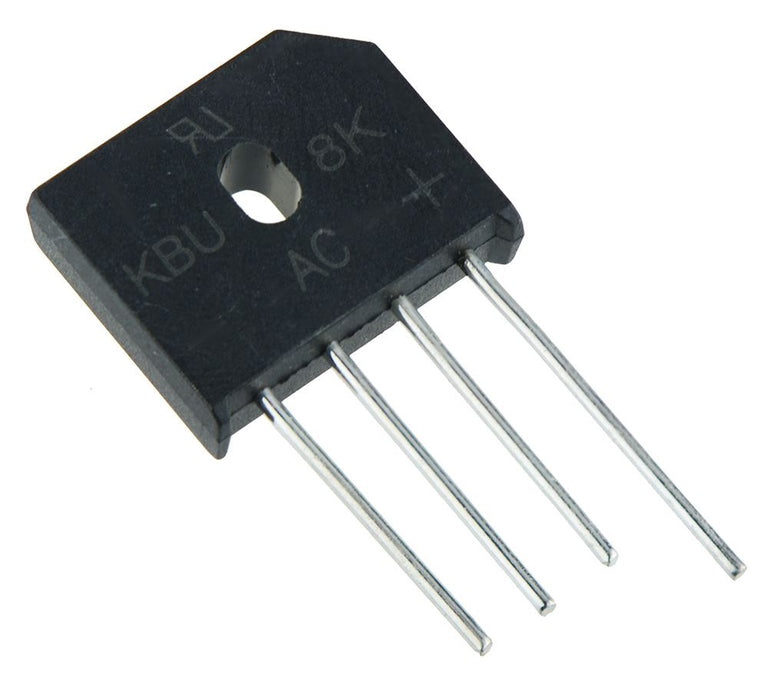

KBU8K Silicone Bridge Rectifier Diode 8A 800V
SKU 402045
MPN: KBU8K
Availability:
259 in stock
Original price
£0.55
-
Original price
£0.55
Original price
£0.55
£0.55
£0.55
-
£0.55
Current price
£0.55
800V silicone bridge rectifier diode with an 8A forward current rating suitable for a wide range of PCB applications.
Low reverse leakage Suitable for printed circuit boards 800V maximum repetitive peak reverse voltage 8A maximum average forward rectified current
Specification
| Average Rectified Current | 8A |
| Back Order Lead Time | 150 |
| Maximum DC Blocking Voltage | 800V |
| Maximum Forward Voltage | 1.1V |
| Maximum RMS Voltage | 560V |
| MOQ | 1 |
| Mounting Style | Through Hole |
| Operating Temperature | -65°C to 150°C |
| Package | Moulded Plastic Body |
| Packaging | Bulk |
| Peak Reverse Voltage | 800V |
| Peak Surge Current | 150A |
