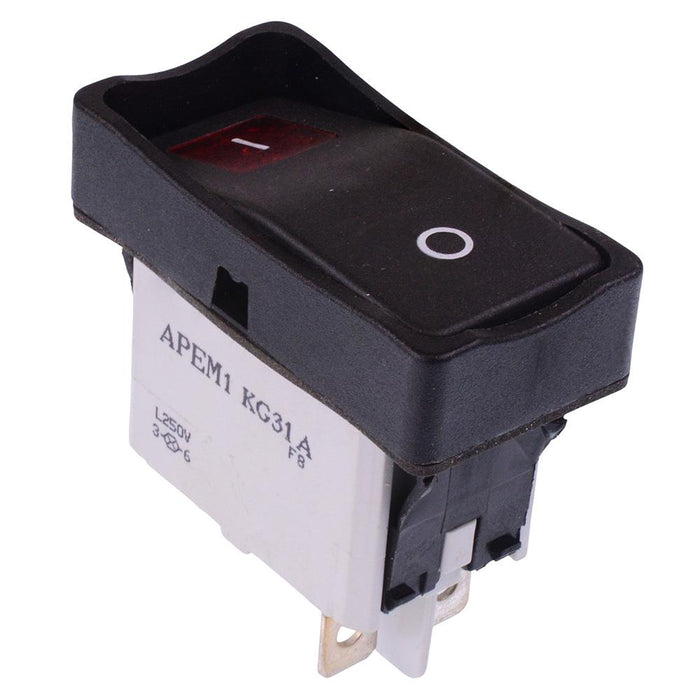

KG312A2NXD246XCV04XX03 APEM On-Off Red 250V illuminated Power Rocker Switch SPST IP65
by APEM
SKU 487469
MPN: KG312A2NXD246XCV04XX03
Availability:
95 in stock
Original price
£15.19
-
Original price
£15.19
Original price
£15.19
£15.19
-
£15.19
Current price
£15.19
The IZPR3S492L0S is a rear mounting round sealed momentary push button switch with a 16mm bushing and normally open contacts. The switch features IP67 protection rating and solder lug gold plated contacts. This makes the switch ideal for applications including automotive and marine.
Button colour: orange LED colour: red LED forward voltage: 2.1V LED forward current: 20mA Panel cut-out: 16.2mm Contacts: momentary SPST-NO Terminals: solder lug contacts Contact rating: 200mA 48VDC Protection rating: IP67 Maximum panel thickness: 3mm Dimensions: 20 x 26.2mm (diameter x height)
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPST |
| Contact Material | Silver |
| Contact Rating | 15A 12VDC |
| Current Rating | 15A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 250VAC |
| Material | Thermoplastic |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP65 |
| Switch Operation | On-Off |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
