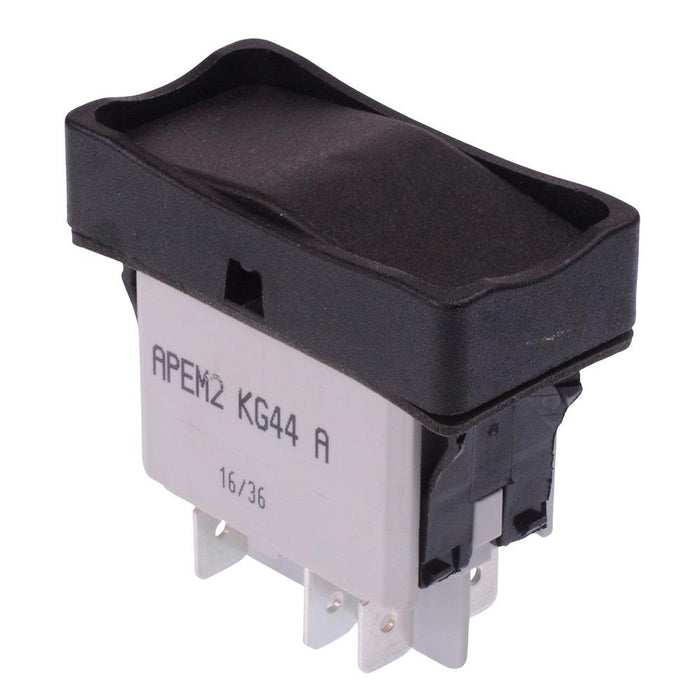

KG443A2XXA21XX APEM On-On-On Automotive Power Rocker Switch DPDT IP65
by APEM
SKU 487525
MPN: KG443A2XXA21XX
Availability:
38 in stock
Original price
£17.83
-
Original price
£17.83
Original price
£17.83
£17.83
£17.83
-
£17.83
Current price
£17.83
The KG443A2XXA21XX is a power rower switch manufactured by APEM, featuring DPDT contacts and quick connect terminals. The switch is sealed to IP65 and is suitable for industrial and automotive applications.
On-On-On operation DPDT contacts IP65 protection rating Protection bezel 6.35mm quick connect terminals Rating: 8A 12VDC, 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 120 |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 8A 12VDC |
| Current Rating | 8A |
| Electrical Life | 10,000 Cycles |
| Illuminated | No |
| Material | Thermoplastic |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 3 |
| Operating Temperature | -10°C to +65°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP65 |
| Switch Operation | On-On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
