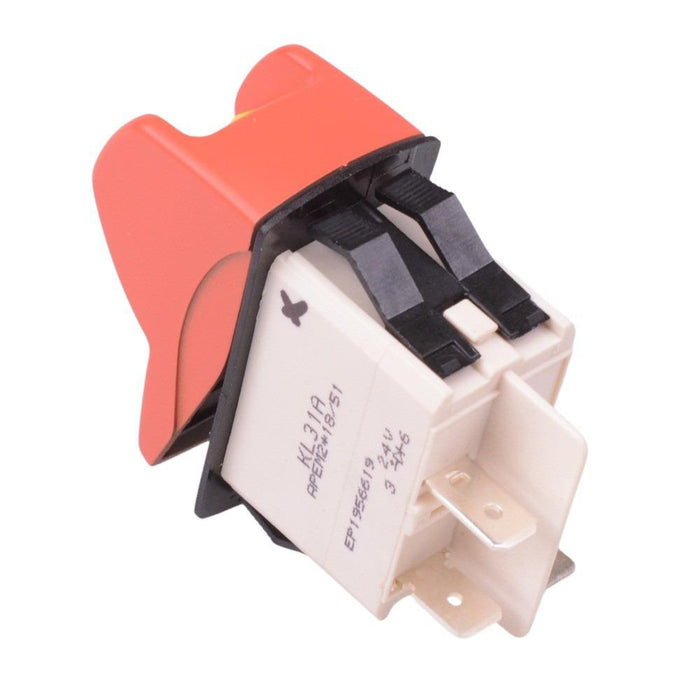

KL313AXKA265NXXT3 On-Off Green 24V illuminated Locking Power Rocker Switch SPDT

by APEM
SKU 490025

MPN: KL313AXKA265NXXT3

Availability:
40 in stock
Original price £24.46 - Original price £24.46
Original price
£24.46
£24.46 - £24.46
Current price £24.46

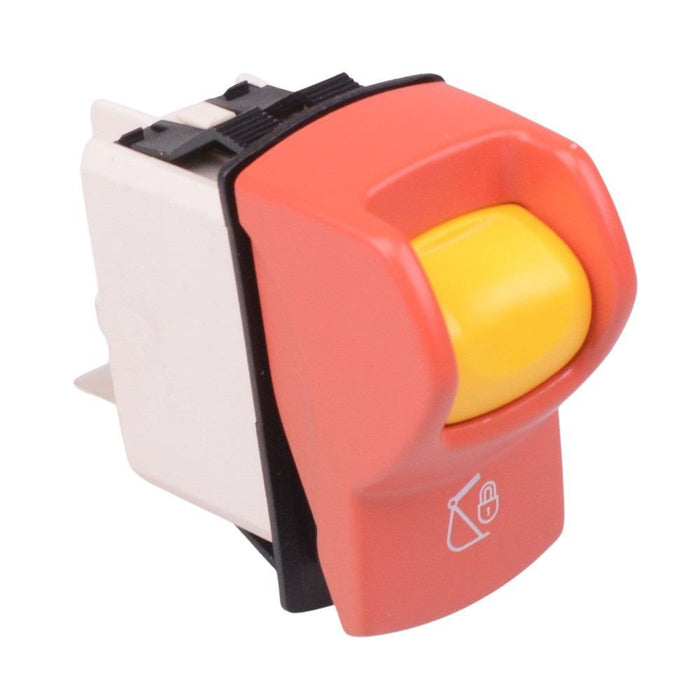

The KL313AXKA265NXXT3 is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features green 24V illumination with a yellow and red actuator.

  • On-Off operation
  • SPDT contacts
  • Green 24V illumination
  • One protected position
  • 6.35mm quick connect terminals
  • Rating: 10A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Specification
    Actuation Latching
    Contact Configuration SPDT
    Contact Material Silver
    Contact Rating 10A 24VDC
    Current Rating 10A
    Illuminated Yes
    Illumination Colour Green
    Illumination Voltage 24V
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 36.8 x 21.08mm
    Panel Thickness 0.8mm to 4.6mm
    Switch Operation On-Off
    Terminal Type Quick Connect
    Voltage Rating 24VDC
