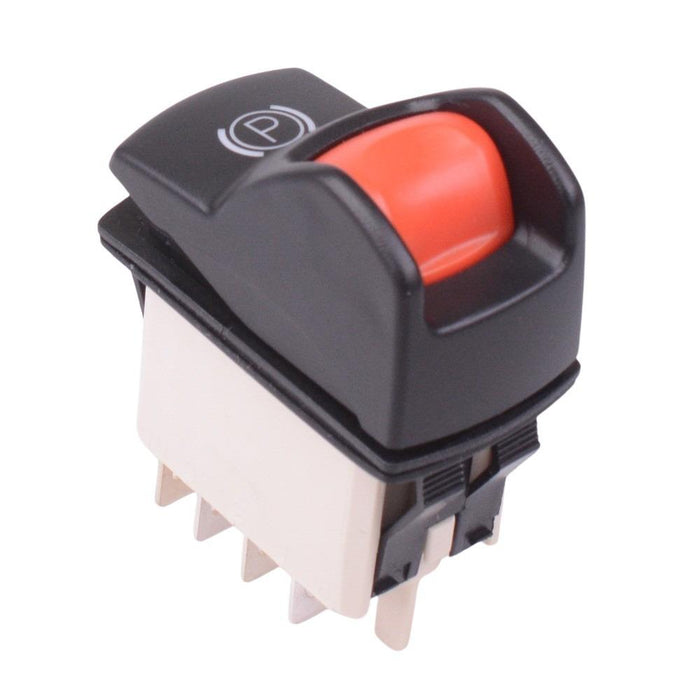

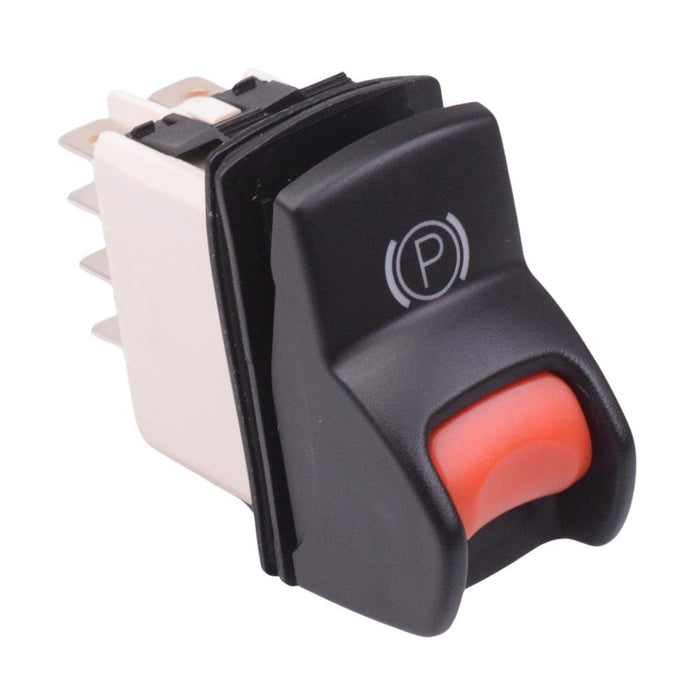

KL36CAKDG226SXXA6 On-On Red 12V illuminated Locking Power Rocker Switch SPDT IP68
by APEM
SKU 490027
MPN: KL36CAKDG226SXXA6
Availability:
Only 1 left!
Original price
£20.67
-
Original price
£20.67
Original price
£20.67
£20.67
£20.67
-
£20.67
Current price
£20.67
The KL36CAKDG226SXXA6 is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features 12V red illumination and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.
On-On operation DPDT contacts Red 12V illumination IP68 protection rating One protected position Quick connect terminals Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm Compatible with U2292 and U3152 connector
Specification
| Actuation | Latching |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 12V |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8mm to 4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
