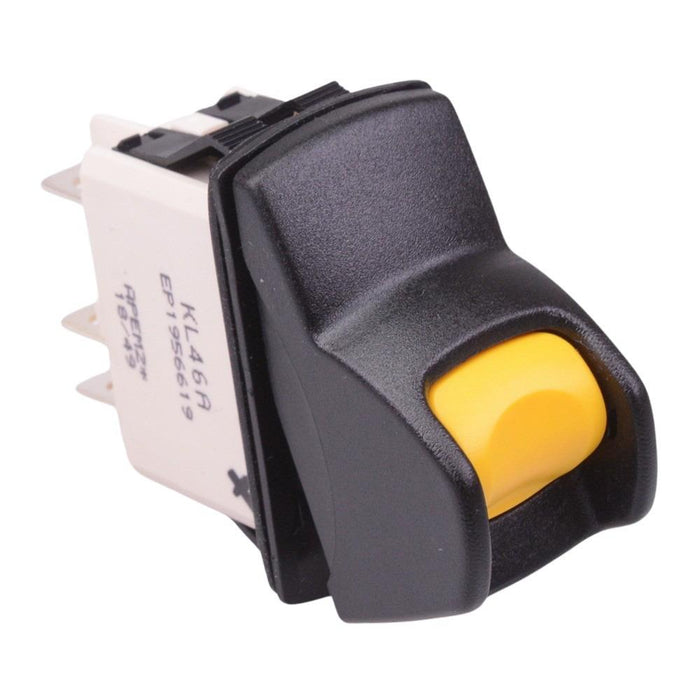

KL462AKXA125N On-On Yellow 24V Locking Power Rocker Switch DPDT IP68
by APEM
SKU 490028
MPN: KL462AKXA125N
Availability:
Out of stock
Sold out
Original price
£17.92
-
Original price
£17.92
Original price
£17.92
£20.33
£20.33
-
£20.33
Current price
£20.33
The KL462AKXA125N is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features a yellow actuator and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.
On-On operation DPDT contacts IP68 protection rating One protected position Quick connect terminals Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 5A 24VDC |
| Current Rating | 5A |
| Illuminated | No |
| MOQ | 1 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8mm to 4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
