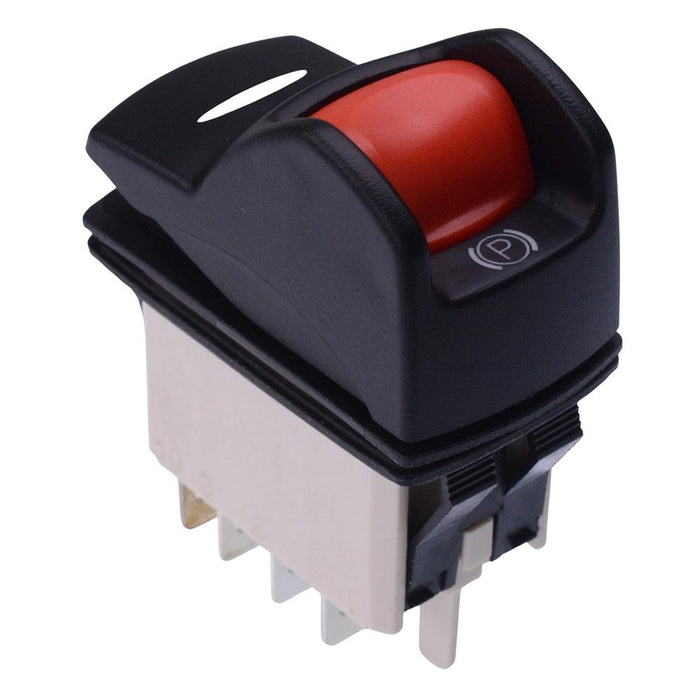

KL46CAKJG226SA6LP APEM On-On Parking Brake Red 24V Locking Power Rocker Switch DPDT IP68
by APEM
SKU 487761
MPN: KL46CAKJG226SA6LP
Availability:
Only 1 left!
Original price
£29.86
-
Original price
£29.86
Original price
£29.86
£29.86
-
£29.86
Current price
£29.86
The KL46CAKJG226SA6LP is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features 24V red illumination and is sealed to IP68, making it suitable for automotive and commerical vehicle applications.
Parking brake symbol On-On operation DPDT contacts Red 24V illumination IP68 protection rating One protected position 6.35mm quick connect terminals Compatible with U2292 and U3152 connector Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
Actuation | Latching |
Back Order Lead Time | 10 Days |
Contact Configuration | DPDT |
Contact Material | Silver |
Contact Rating | 10A 24VDC |
Current Rating | 10A |
Electrical Life | 10,000 Cycles |
Illuminated | Yes |
Illumination Colour | Red |
Illumination Voltage | 24VDC |
Material | PA66 |
Mounting Style | Panel |
Number of Poles | 2 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 36.8 x 21.08mm |
Panel Thickness | 0.8-4.6mm |
Protection Level | IP68 |
Switch Operation | On-On |
Terminal Type | Quick Connect |
Voltage Rating | 24VDC |
