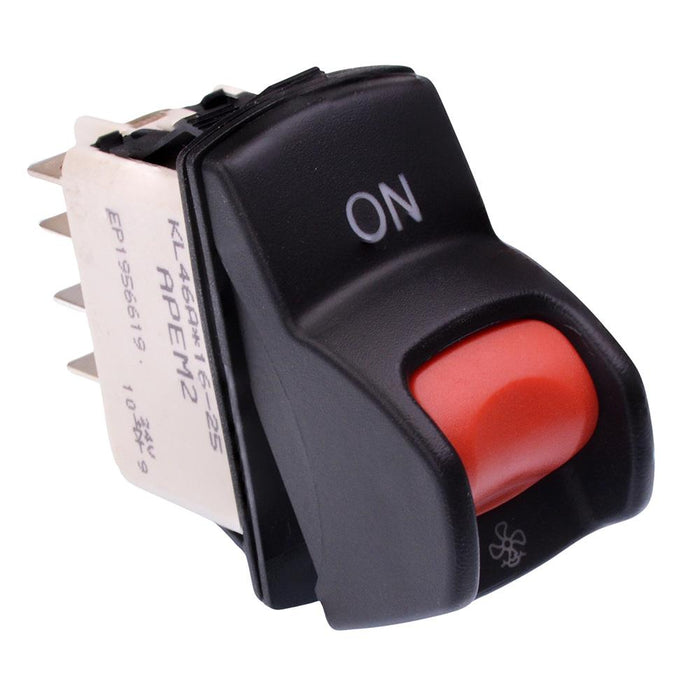

KL46CAKJG226SQF01 APEM On-On Fan Red 24V Locking Power Rocker Switch DPDT IP68
by APEM
SKU 488027
MPN: KL46CAKJG226SQF01
Availability:
6 in stock
Original price
£29.44
-
Original price
£29.44
Original price
£29.44
£29.44
-
£29.44
Current price
£29.44
The KL46CAKJG226SQF01 is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features 24V red illumination and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.
Fan symbol On-On operation DPDT contacts Red 24V illumination IP68 protection rating One protected position 6.35mm quick connect terminals Compatible with U2292 and U3152 connector Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Latching |
| Back Order Lead Time | 10 Days |
| Contact Configuration | DPDT |
| Contact Material | Silver |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 24VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 2 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-On |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
