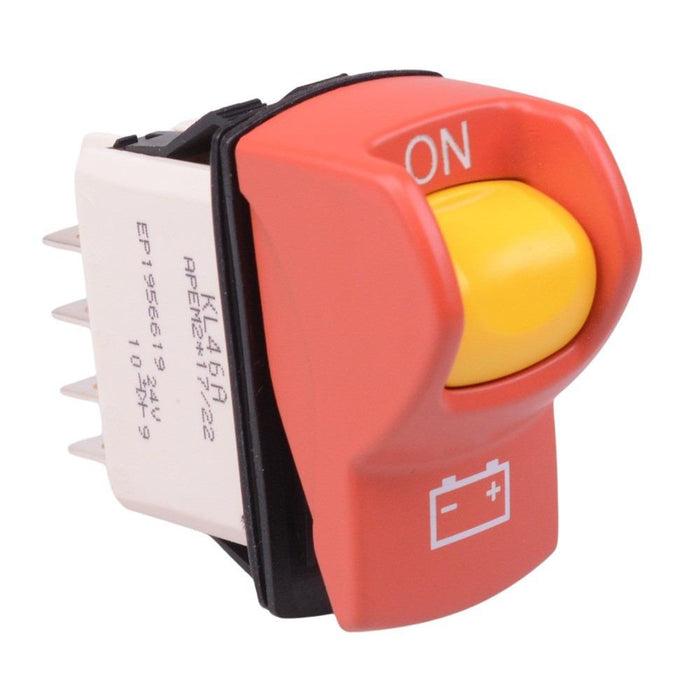

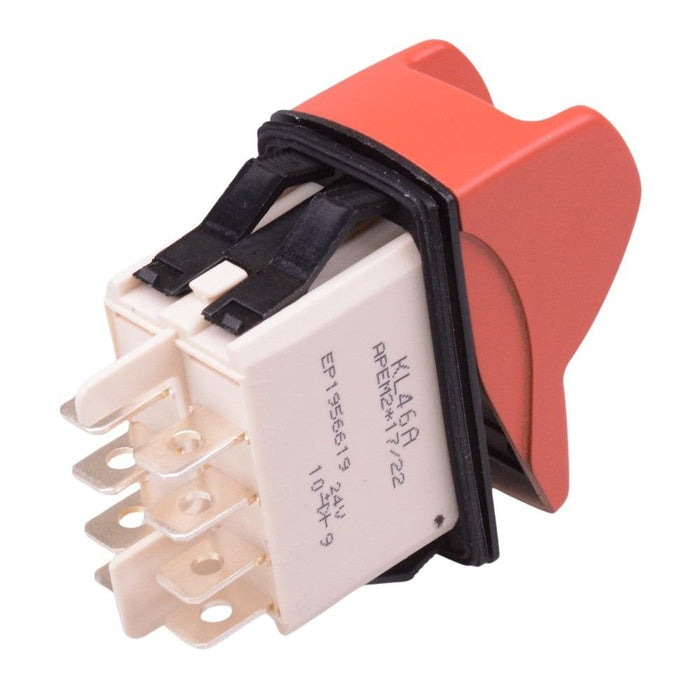

KL46CAKJG265N01AG On-On Red 24V illuminated Locking Rocker Switch Yellow Actuator DPDT IP68

by APEM
SKU 490030

MPN: KL46CAKJG265N01AG

Availability:
32 in stock
Original price £29.14 - Original price £29.14
Original price
£29.14
£29.14 - £29.14
Current price £29.14
The KL46CAKJG265N01AG is a 24V power rower switch manufactured by APEM, featuring a locking mechanism to prevent against accidental operation. The switch features 24V red illumination and is sealed to IP68, making it suitable for automotive and commercial vehicle applications.

  • On-On operation
  • DPDT contacts
  • IP68 protection rating
  • One protected position
  • Red 24V illumination
  • Quick connect terminals
  • Rating: 5A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Compatible with U2292 and U3152 connector
  • Specification
    Actuation Latching
    Contact Configuration DPDT
    Contact Material Silver
    Contact Rating 5A 24VDC
    Current Rating 5A
    Illuminated Yes
    Illumination Colour Red
    Illumination Voltage 24V
    MOQ 1
    Mounting Style Panel
    Number of Poles 1
    Number of Positions 2
    Operating Temperature -40°C to +85°C
    Panel Cut Out 36.8 x 21.08mm
    Panel Thickness 0.8mm to 4.6mm
    Protection Level IP68
    Switch Operation On-On
    Terminal Type Quick Connect
    Voltage Rating 24VDC
