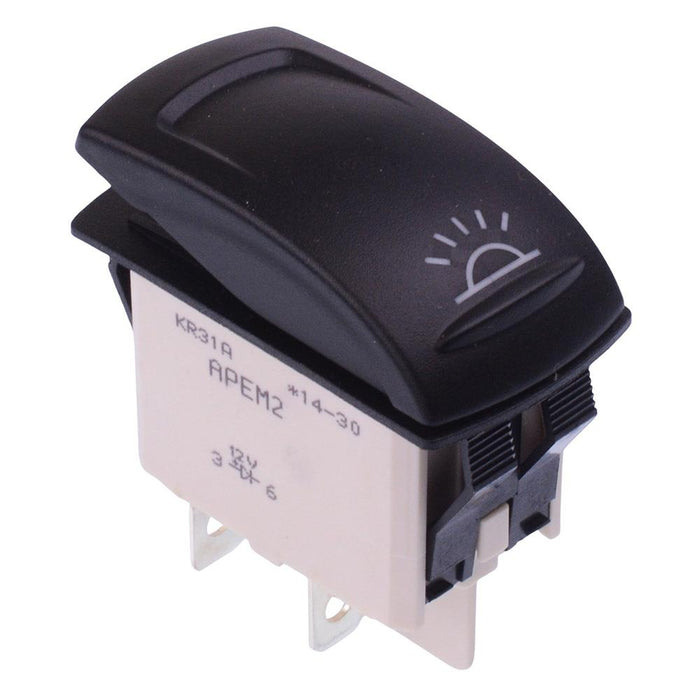

KR312AXFXD22N15XXXX APEM On-Off Yellow 12V illuminated Automotive Rocker Switch SPST

by APEM
SKU 487720

MPN: KR312AXFXD22N15XXXX

Availability:
25 in stock
Original price £7.95 - Original price £7.95
Original price
£7.95 Inc VAT
£7.95 - £7.95
Current price £7.95 Inc VAT
The KR312AXFXD22N15XXXX is an attractive rugged automotive rocker switch from the KR series by APEM, featuring 12V illumination and light symbol. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.

  • Universal light symbol
  • On-Off SPST contacts
  • Yellow 12V LED
  • Solder / quick connect terminals
  • Silver contacts
  • Rating: 10A 24VDC
  • Panel cut-out: 36.8 x 21.08mm
  • Panel thickness: 0.8 to 4.6mm
  • Specification
    Actuation Latching
    Back order lead time 10 Days
    Contact configuration SPST
    Contact material Silver
    Contact rating 10A 24VDC
    Current rating 10A
    Electrical life 10,000 Cycles
    Illuminated Yes
    Illumination colour Yellow
    Illumination voltage 12VDC
    Material PA66
    Mounting style Panel
    Number of poles 1
    Number of positions 2
    Operating temperature -40°C to +85°C
    Panel cut out 36.8 x 21.08mm
    Panel thickness 0.8-4.6mm
    Switch operation On-Off
    Terminal type Quick Connect
    Voltage rating 24VDC
