KR312AXXXA12N21XXXX On-Off 24V Auto Rocker Switch Windshield Wiper SPDT IP68
by APEM
SKU 490035
MPN: KR312AXXXA12N21XXXX
Availability:
33 in stock
Original price
£13.47
-
Original price
£13.47
Original price
£13.47
£13.47
-
£13.47
Current price
£13.47

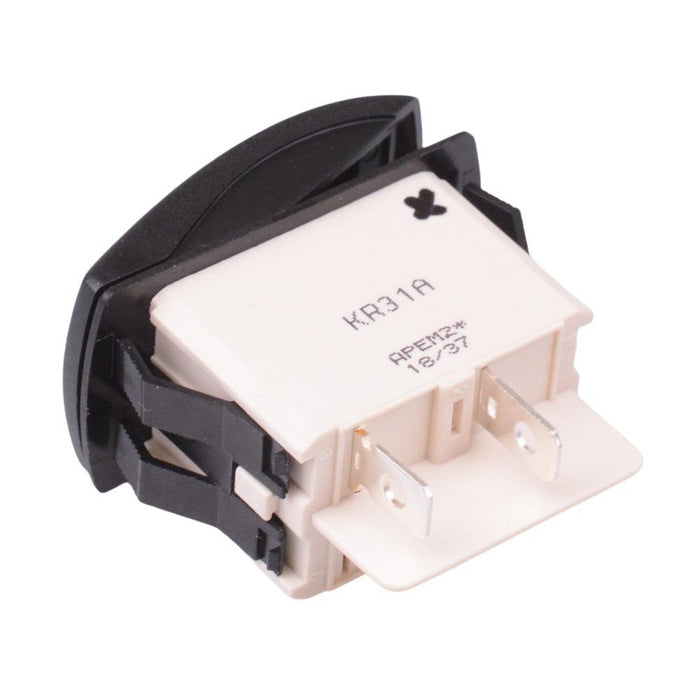

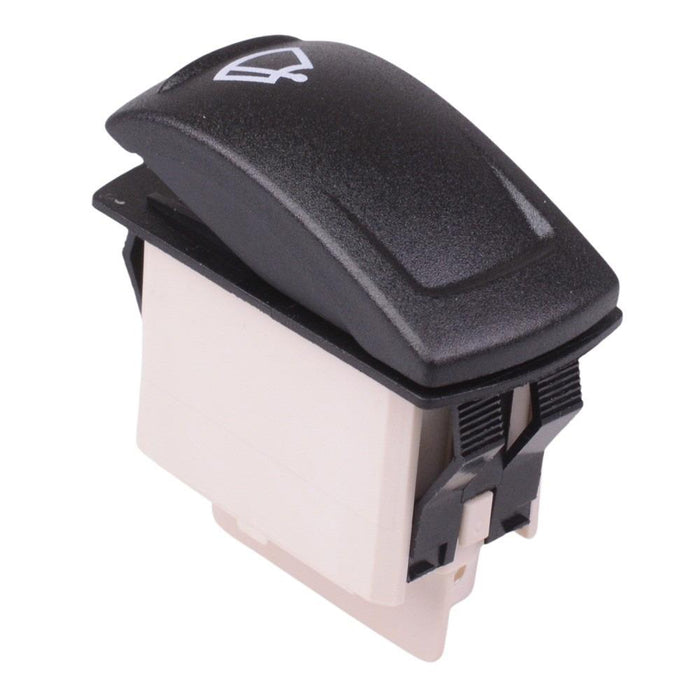

The KR312AXXXA12N21XXXX is an attractive rugged automotive rocker switch from the KR series by APEM. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
On-Off SPST contacts IP68 Rated Protection Solder / quick connect terminals Silver contacts Rating: 5A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
Actuation | Latching |
Contact Configuration | SPST |
Contact Material | Silver |
Contact Rating | 5A 24VDC |
Current Rating | 5A |
Illuminated | No |
MOQ | 1 |
Mounting Style | Panel |
Number of Poles | 1 |
Number of Positions | 2 |
Operating Temperature | -40°C to +85°C |
Panel Cut Out | 36.8 x 21.08mm |
Panel Thickness | 0.8mm to 4.6mm |
Switch Operation | On-Off |
Terminal Type | Quick Connect |
Voltage Rating | 24VDC |
