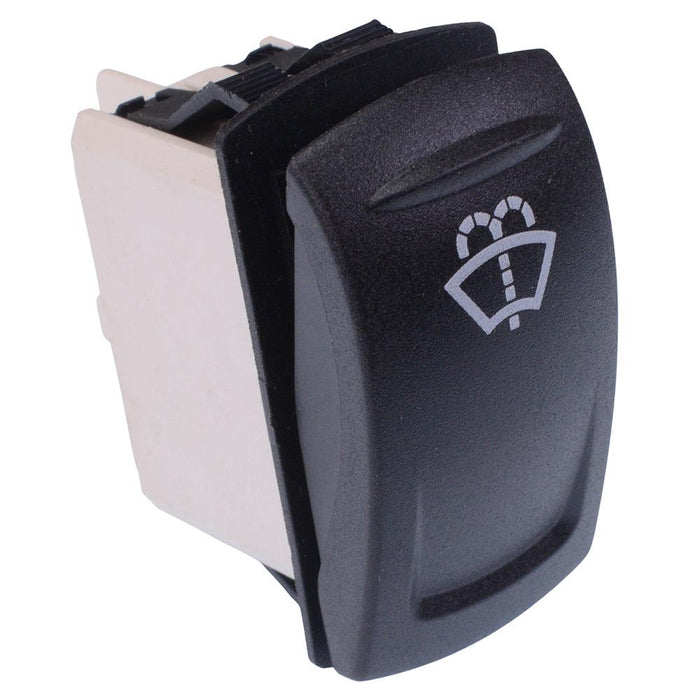

KR352AXXXA12N22XXXX APEM On-(On) Momentary Wiper Fluid Automotive Rocker Switch SPDT
by APEM
SKU 488124
MPN: KR352AXXXA12N22XXXX
Availability:
11 in stock
Original price
£15.81
-
Original price
£15.81
Original price
£15.81
Inc VAT
£15.81
-
£15.81
Current price
£15.81
Inc VAT
The KR352AXXXA12N22XXXX is an attractive rugged automotive rocker switch from the KR series by APEM, featuring windscreen wiper fluid symbol. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
Windscreen wiper fluid symbol On-(On) momentary SPDT contacts Solder / quick connect terminals Silver contacts Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Momentary |
| Back order lead time | 10 Days |
| Contact configuration | SPDT |
| Contact material | Silver |
| Contact rating | 10A 24VDC |
| Current rating | 10A |
| Electrical life | 10,000 Cycles |
| Illuminated | No |
| Material | PA66 |
| Mounting style | Panel |
| Number of poles | 1 |
| Number of positions | 2 |
| Operating temperature | -40°C to +85°C |
| Panel cut out | 36.8 x 21.08mm |
| Panel thickness | 0.8-4.6mm |
| Switch operation | On-(On) |
| Terminal type | Quick Connect |
| Voltage rating | 24VDC |
