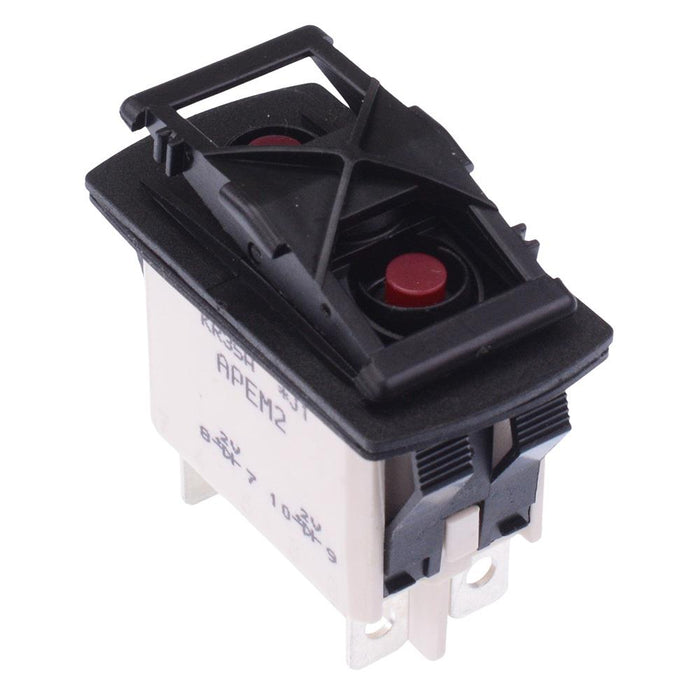

KR35CAKUUG APEM On-(On) Momentary Red LED Automotive Rocker Switch SPDT IP68
by APEM
SKU 488229
MPN: KR35CAKUUG
Availability:
9 in stock
Original price
£17.76
-
Original price
£17.76
Original price
£17.76
£17.76
£17.76
-
£17.76
Current price
£17.76
The KR35CAKUUG is an attractive rugged automotive rocker switch from the KR series by APEM, red LED illumination. The switch features quick connect terminals and long life expectancy, suitable for a wide range of automotive applications.
Red LED 2V LED voltage On-(On) momentary SPDT contacts Solder / quick connect terminals Silver contacts Protection rating: IP68 Rating: 10A 24VDC Panel cut-out: 36.8 x 21.08mm Panel thickness: 0.8 to 4.6mm
Specification
| Actuation | Momentary |
| Back Order Lead Time | 10 Days |
| Contact Configuration | SPDT |
| Contact Material | Silver |
| Contact Rating | 10A 24VDC |
| Current Rating | 10A |
| Electrical Life | 10,000 Cycles |
| Illuminated | Yes |
| Illumination Colour | Red |
| Illumination Voltage | 2VDC |
| Material | PA66 |
| Mounting Style | Panel |
| Number of Poles | 1 |
| Number of Positions | 2 |
| Operating Temperature | -40°C to +85°C |
| Panel Cut Out | 36.8 x 21.08mm |
| Panel Thickness | 0.8-4.6mm |
| Protection Level | IP68 |
| Switch Operation | On-(On) |
| Terminal Type | Quick Connect |
| Voltage Rating | 24VDC |
